Product Description

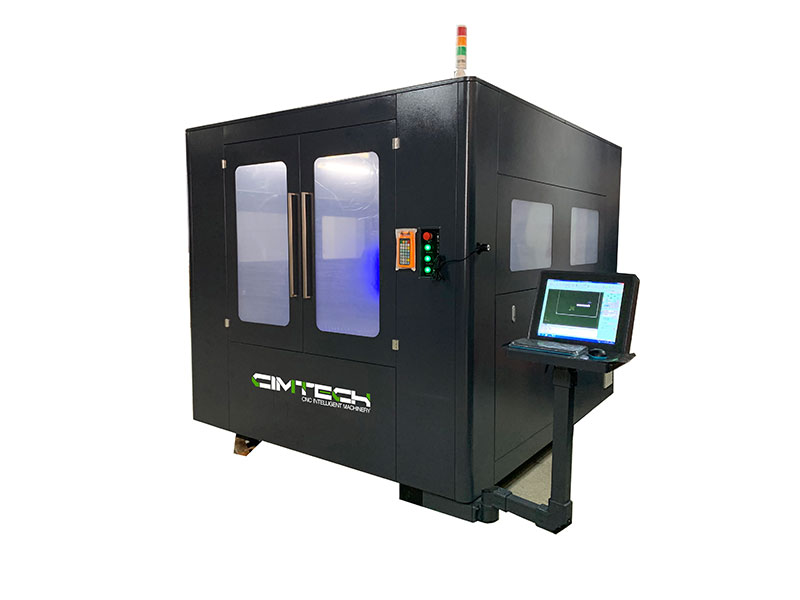

Fiber Laser Cutting Machine S Series
1. Video:
2. Main Configuration:

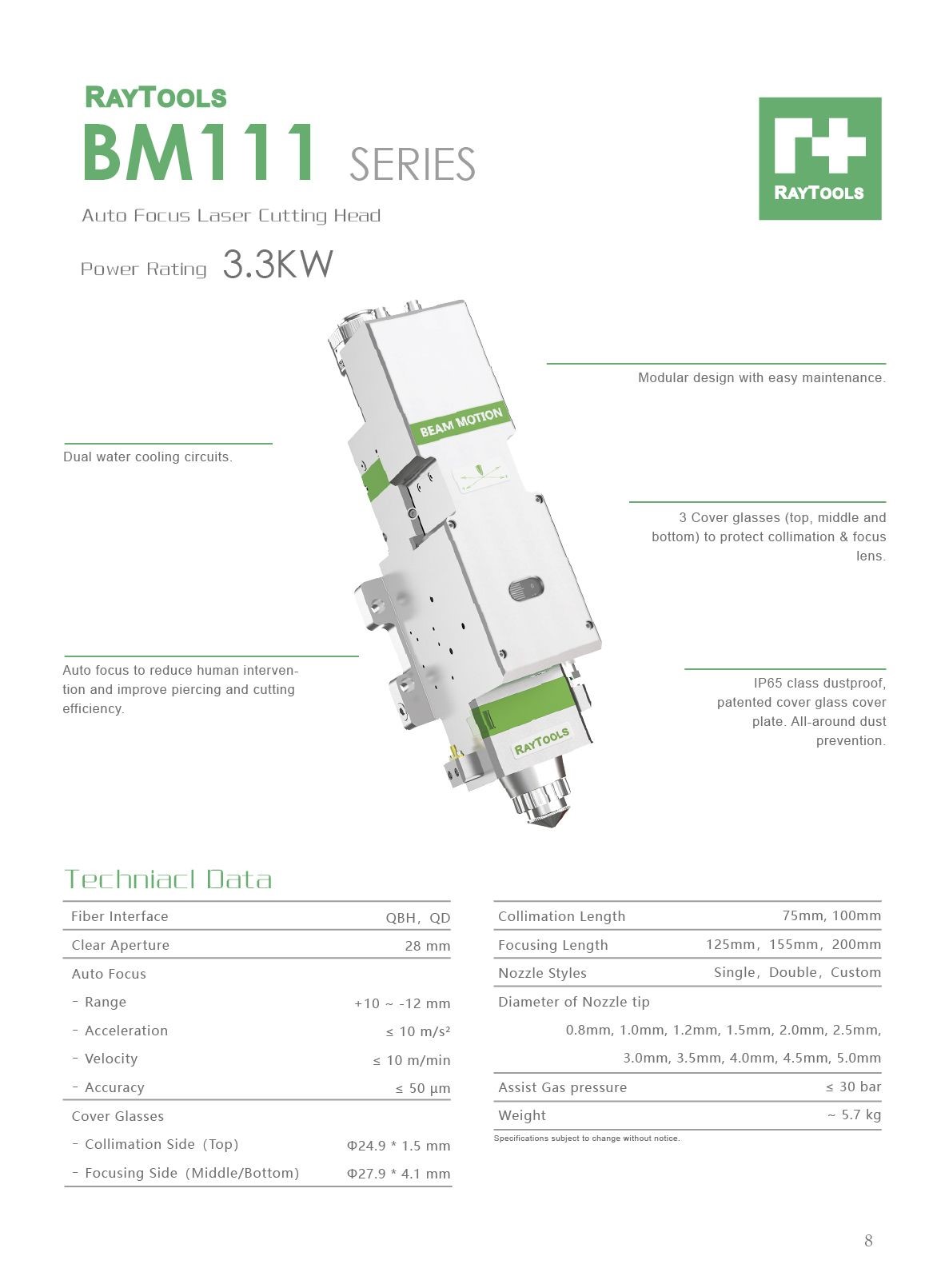

 | Autofocus Laser Cutting Head Modular design with easy maintenance. Dual water cooling circuits. Auto focus to reduce human intervention and improve piercing and cutting efficiency. 3 Cover glasses (top, middle and bottom) to protect collimation & focus lens. IP65 class dustproof, patented cover glass cover plate. All-around dust prevention. |

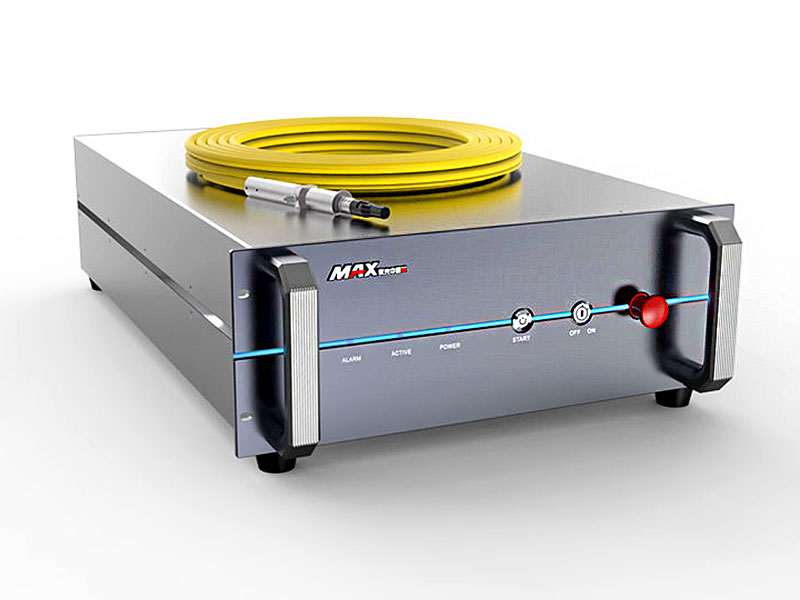

 | Laser Generator The new generation of Single Module 1000W-3000W Fiber Lasers which combined with high power, compact size, superior beam quality, and high light conversion efficiency. It can meet the requirements of precision processing, 3C product welding and high-reflective material cutting ability are significantly improved. It is suitable for remote processing, high-frequency laser cutting and clean surface cutting. It can be quickly and conveniently integrated into machine tool equipment and large-scale factory automation production line. Product advantages: 1. More reliable and saving power. 2. Easy to maintain. 3. Easy to operate. |

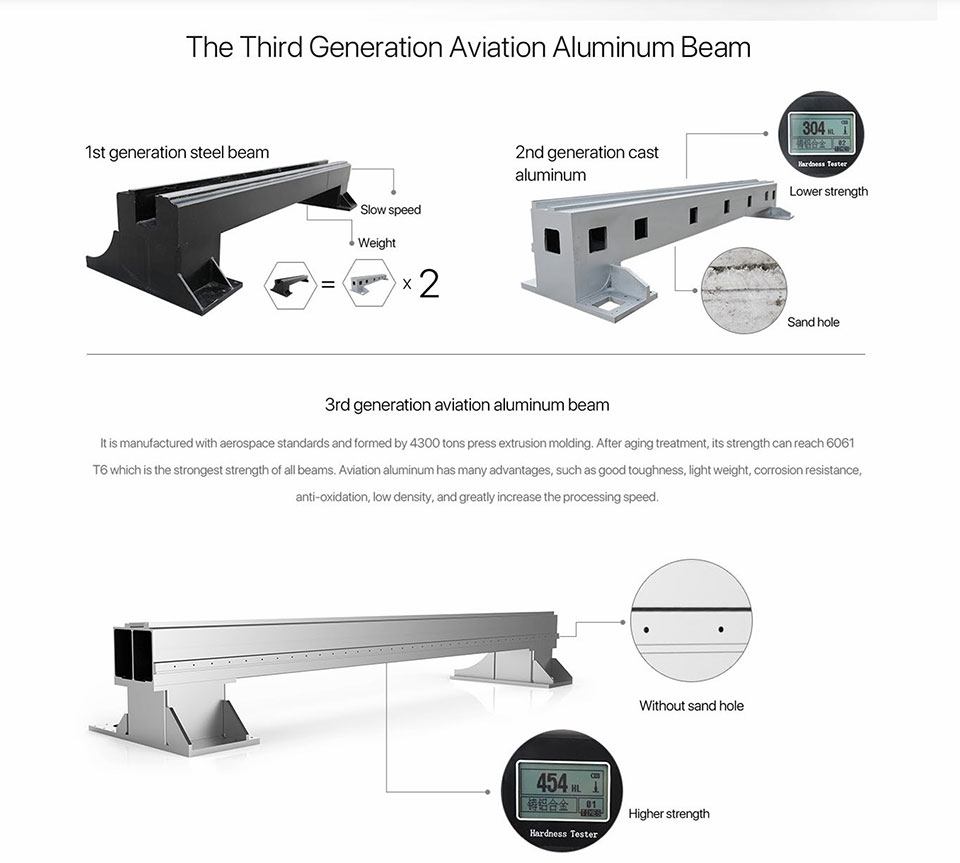

 | 3rd Generation Aviation Aluminum Beam It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed. |
3. Cutting Samples:
4. Parameter:
NO. | Model | CIMF1212S | CIMF1313S | CIMF1515S |
1 | Working Area | 1200*1200mm | 1300*1300 | 1500*1500 |
2 | Laser Power | 1000W -3000W (Optional) | ||
3 | Controller | Cypcut | ||
4 | Laser Cutting Head | Switzerland Raytools Cutting head | ||
5 | Driving System | Yaksaw Servo System | ||
6 | Position Accuracy | ±0.03mm/m | ||
7 | Maximum Speed | 100m/min | ||
8 | Acceleration Speed | 1.0G | ||
9 | Working Voltage | 3PH380V/50HZ/60Z | ||
10 | Weight | 2050KG | 2150KG | 2350KG |
