Product Description

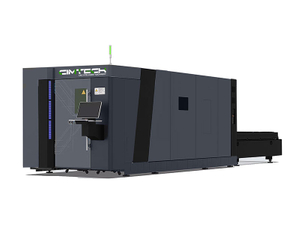

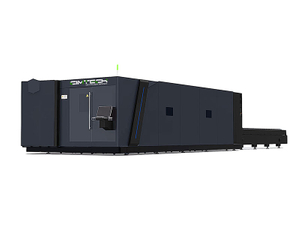

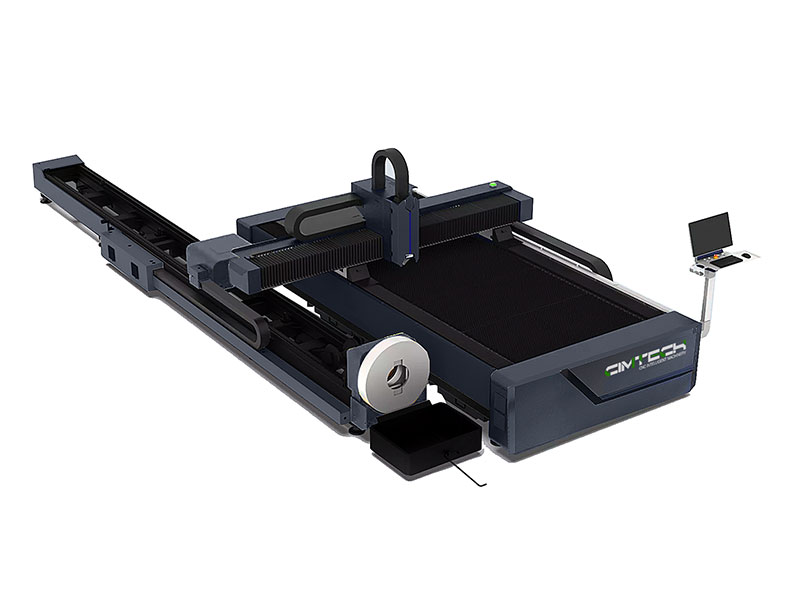

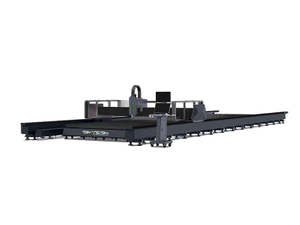

Fiber Laser Cutting Machine M Series
1. Video:
2. Main Configuration:

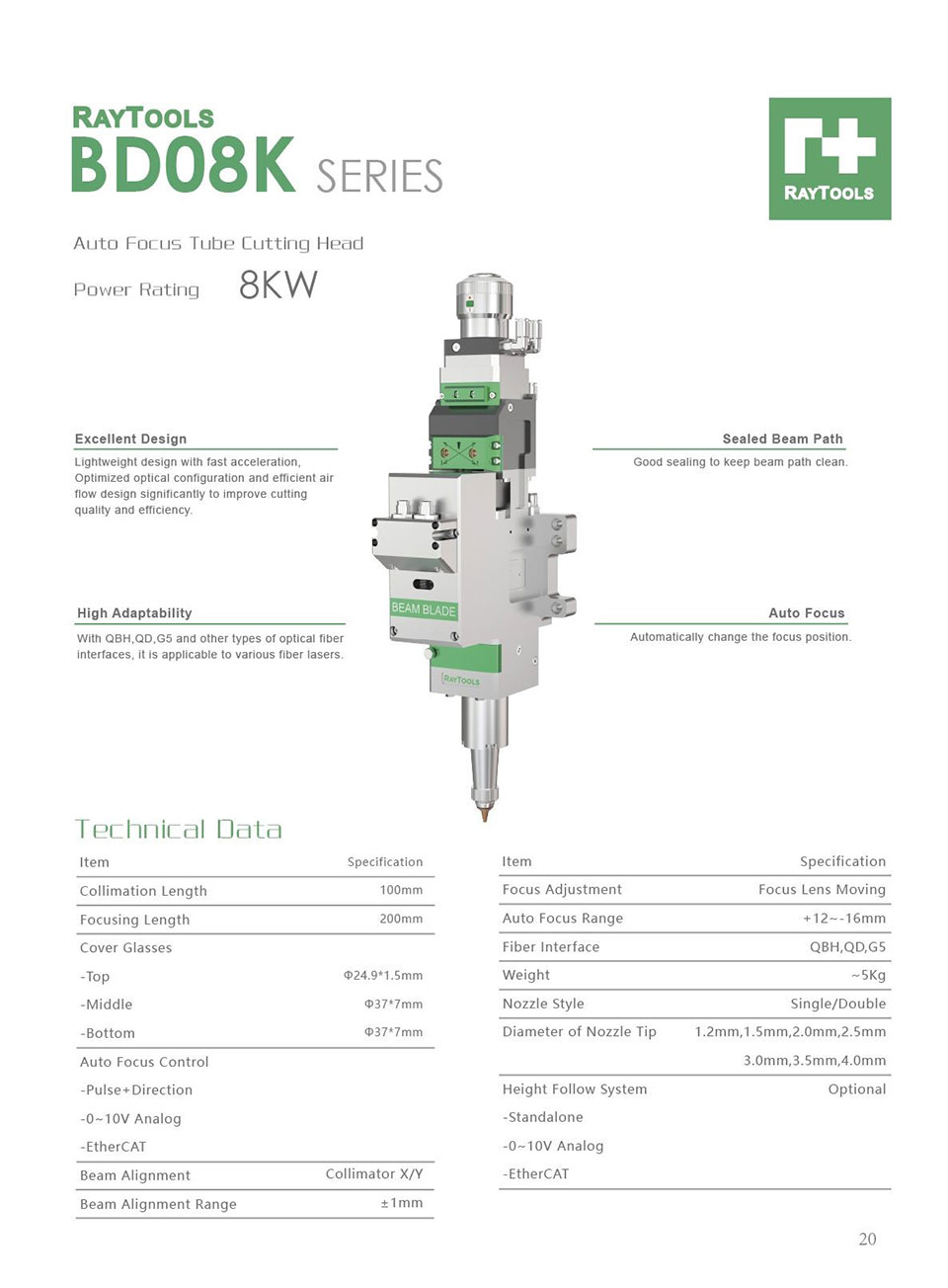

 | Autofocus Laser Cutting Head Without Manual Focusing The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting. Bigger Adjustment Range Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates. Long Service Life Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head. |

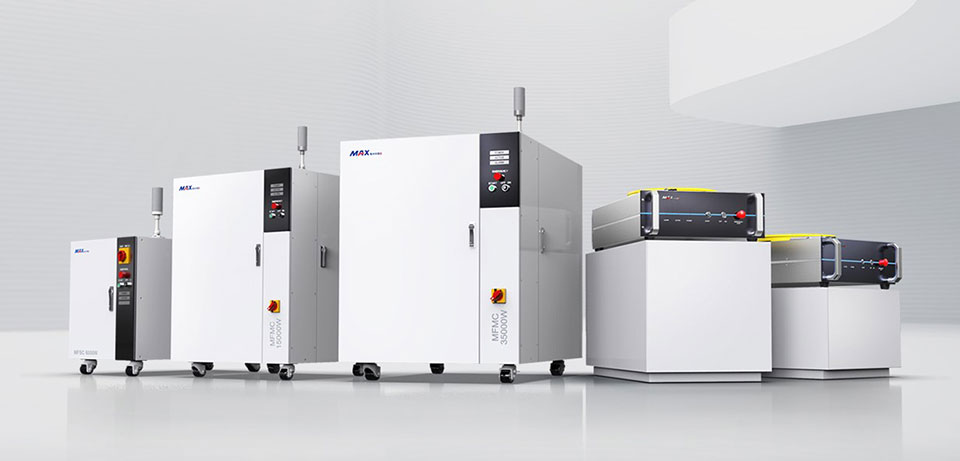

 | Laser Generator 1000W~6000W SINGLE MODULE CW Fiber Laser is a high-power fiber laser with high electro-optical conversion efficiency, compact size, good beam quality and maintenance-free. Wide fiber core diameter ranges from 100~600um, can be customized from 800um~1000um. Mainly used in metal welding and cladding and other fields such as new energy, 3C, precision machining. |

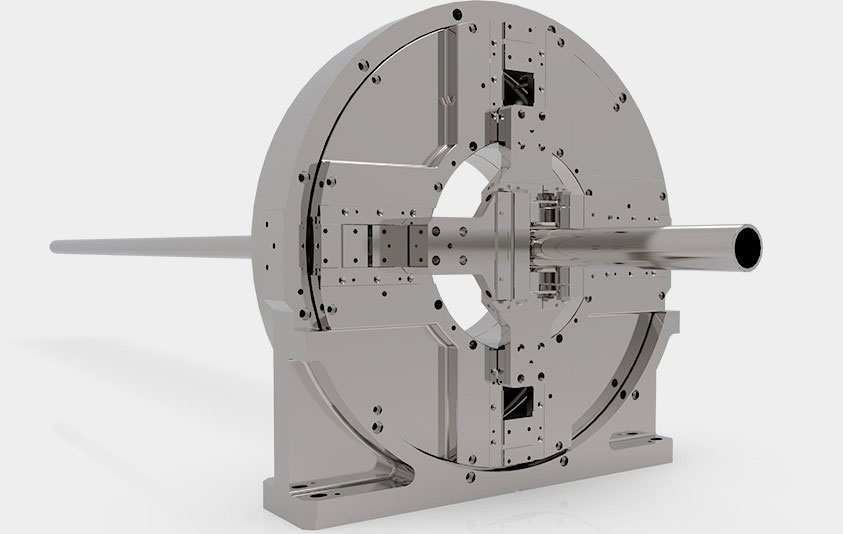

 | Clamp Design It adopts a pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-220mm. |

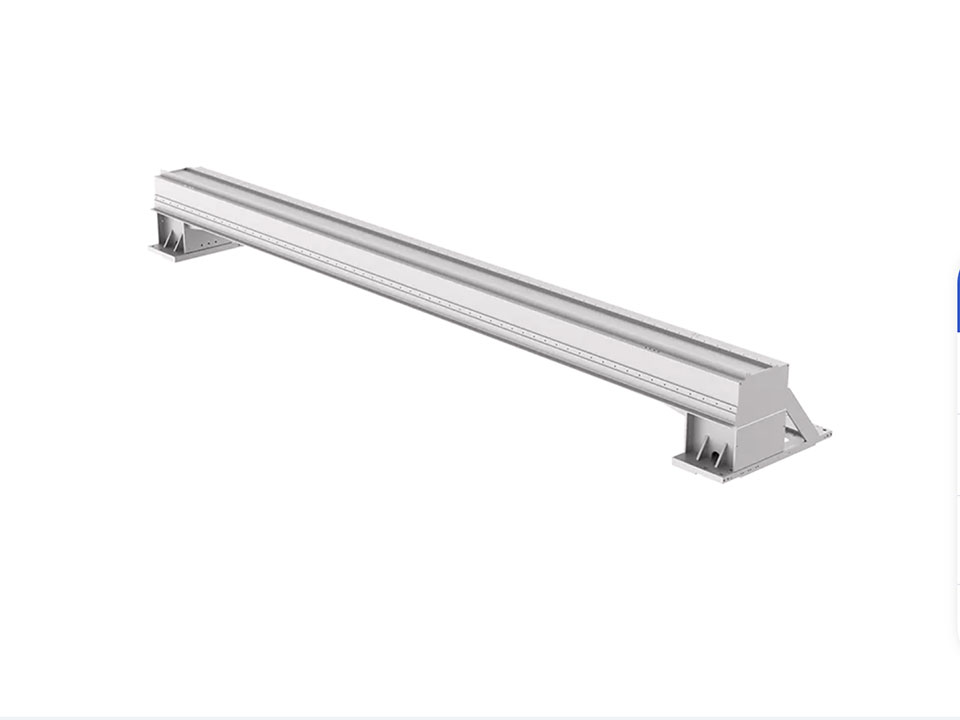

 | Brand-new Aluminum Beam The new fifth-generation 6-series aluminum beam has 20% less weight and 15% more torsional resistance than the previous generation. Lightweight design beams play a high dynamic performance of the equipment to improve processing efficiency. |

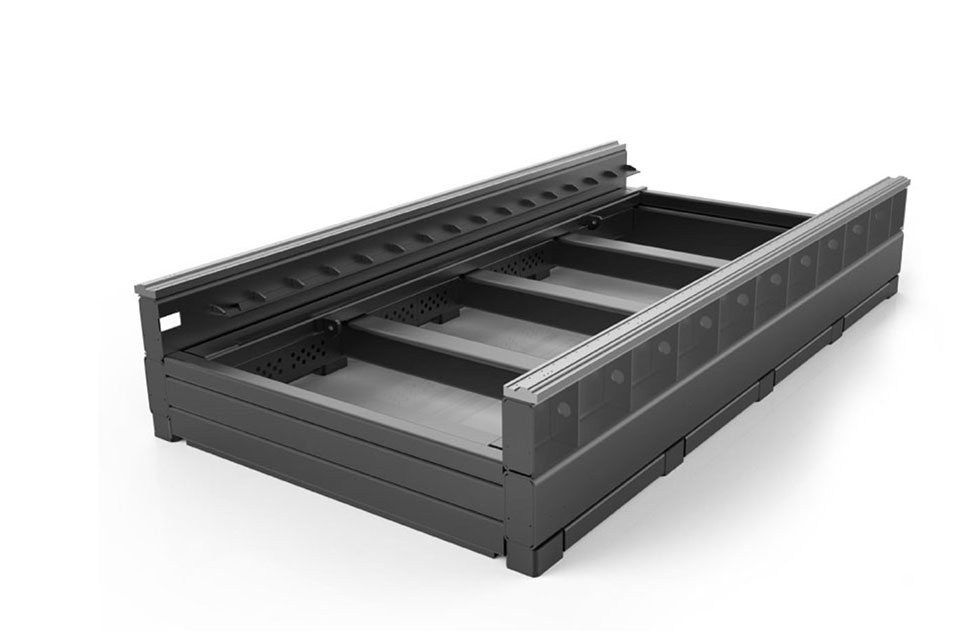

 | Upgraded Matrix Machine Bed with Level-up Rigidity Brand-new matrix machine and welding design of the cross-section improve the rigidity of entire machine bed structure significantly and decrease the negative influence on machine bed. |

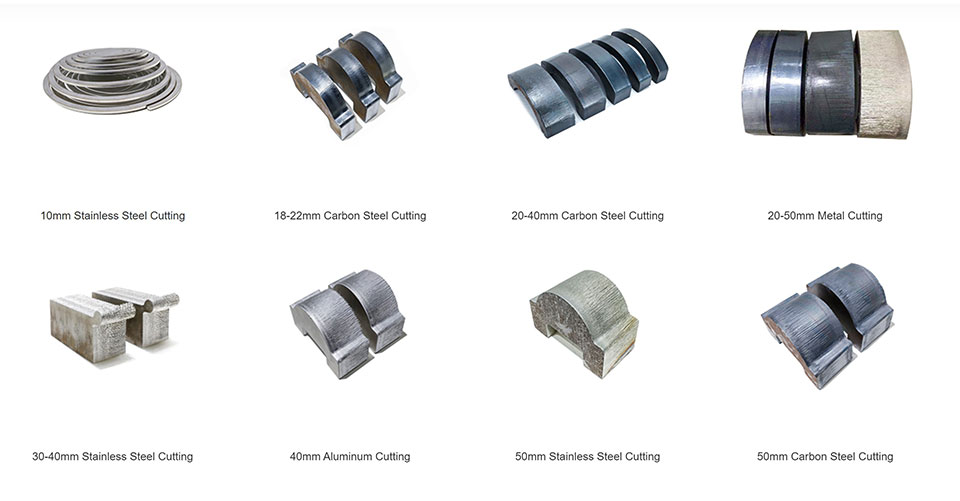

3. Cutting Sample:
4. Parameter:
NO. | Model | CIMF3015R | CIMF4015R | CIMF4020R | CIM6025R |
1 | Working Area | 3000*1500mm | 4000*1500mm | 4000*2000mm | 6000*2500mm |
230*6000mm | 230*6000mm | 230*6000mm | 230*6000mm | ||
2 | Laser Power | 3000W-20000W | |||
3 | Controller | Cypcut | |||
4 | Laser Cutting Head | Switzerland Raytools Cutting head | |||
5 | Driving System | Yaksaw Servo System | |||
6 | Position Accuracy | ±0.03mm/m | |||
7 | Maximum Speed | 120m/min | |||
8 | Acceleration Speed | 1.5G | |||
9 | Working Voltage | 3PH380V/50HZ/60HZ | |||
10 | Weight | 4500KG | 5000KG | 5500KG | 6500KG |
