Product Description

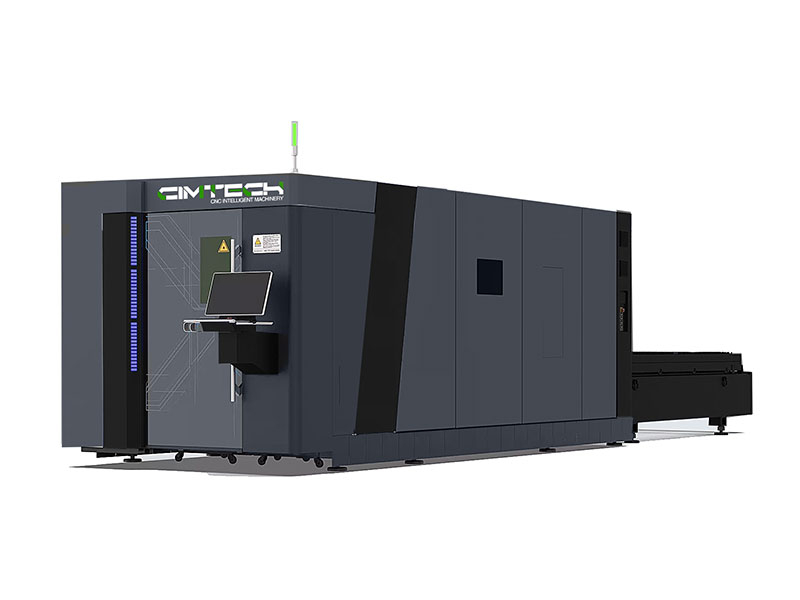

Fiber Laser Cutting Machine E Series
1. Video:
2. Main Configuration:

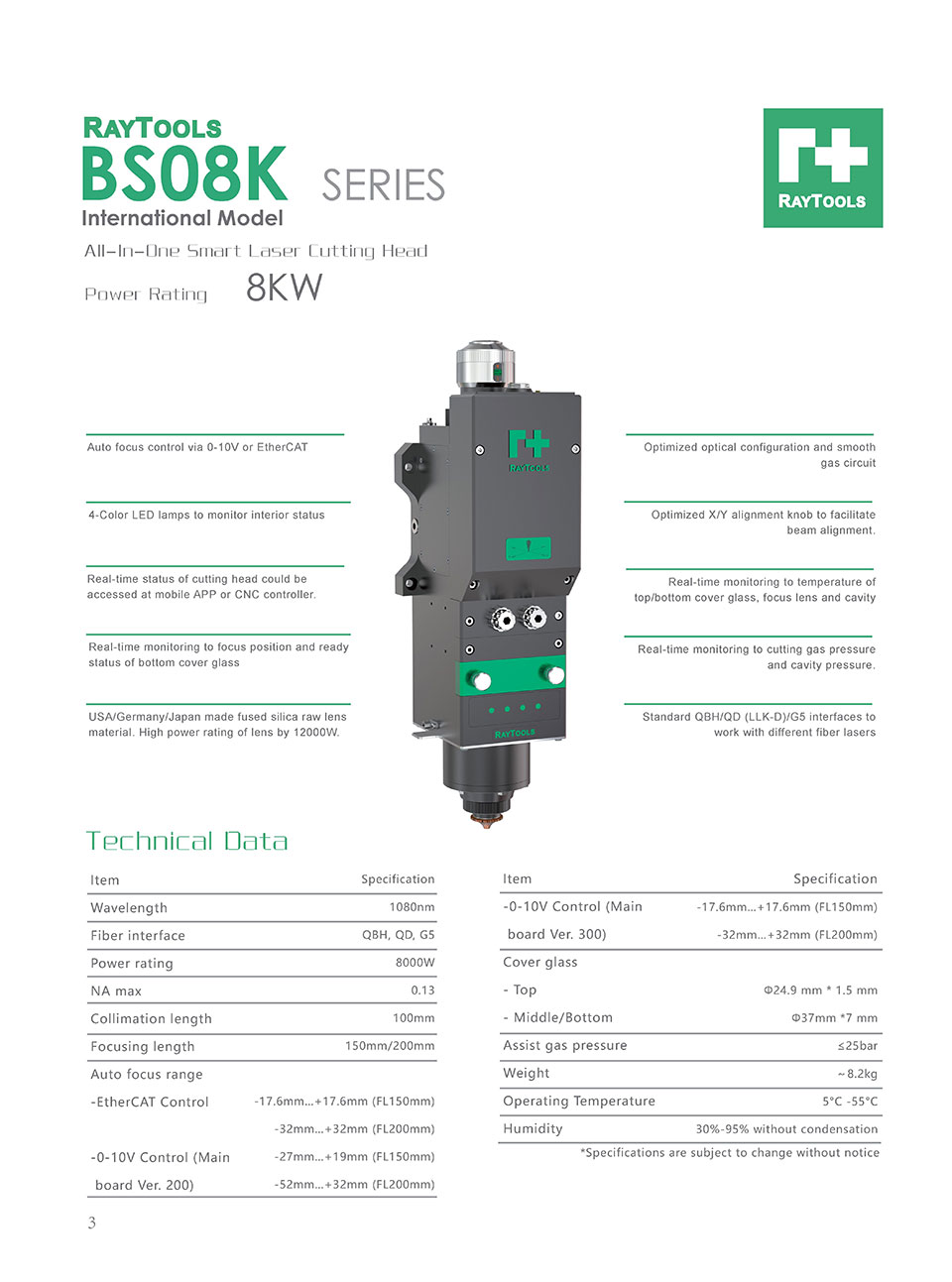

 | Autofocus Laser Cutting Head Without Manual Focusing The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting. Bigger Adjustment Range Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates. Long Service Life Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head. |

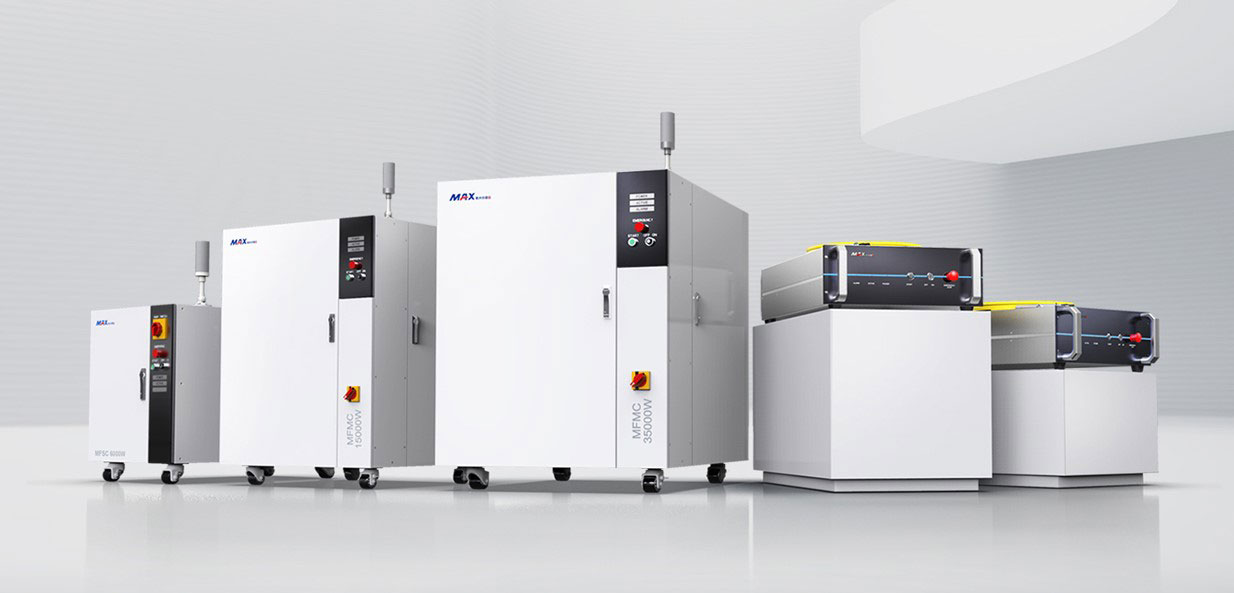

 | Laser Generator Max photonics Multi-Module CW Fiber Laser adopts water cooling, modular design, compact structure, highly integrated system, maintenance-free and high reliability. The laser power is continuously adjustable, with high electro-optical conversion efficiency , high beam quality , and high laser stability. It is an ideal laser source for thick plate laser cutting, laser welding, laser cladding, surface heat treatment and other applications. 30000W-40000W CW Fiber Laser adopts optical fiber with QBH head output 30000W-40000W CW Fiber Laser adopts optical fiber with LOE head output, which can be used with laser processing heads, galvanometers, etc,for system integration with robots and machine tools. It is widely used in hardware, medical, automotive, marine, aviation, Construction machinery and other industry. |

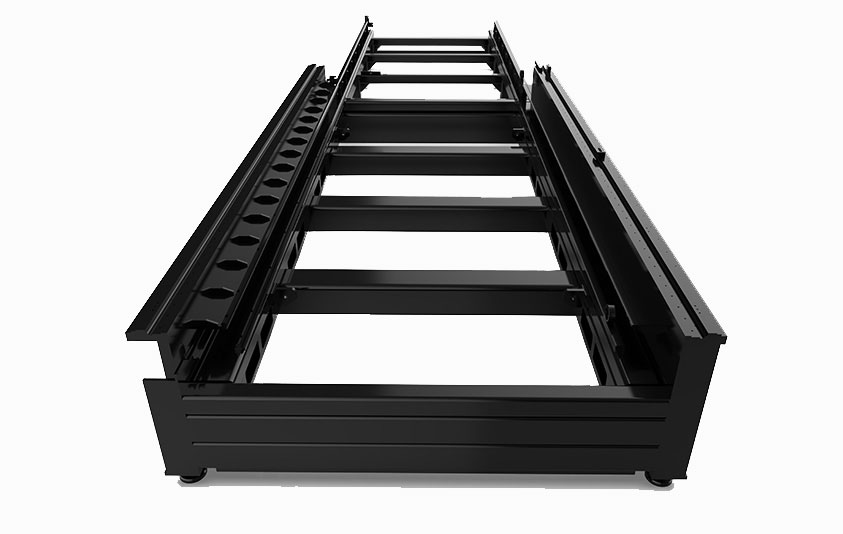

 | Upgraded Matrix Machine Bed with Level-upRigidity Brand-new matrix machine and welding design of the cross-section improve the rigidity of entire machine bed structure significantly and decrease the negative influence on machine bed. |

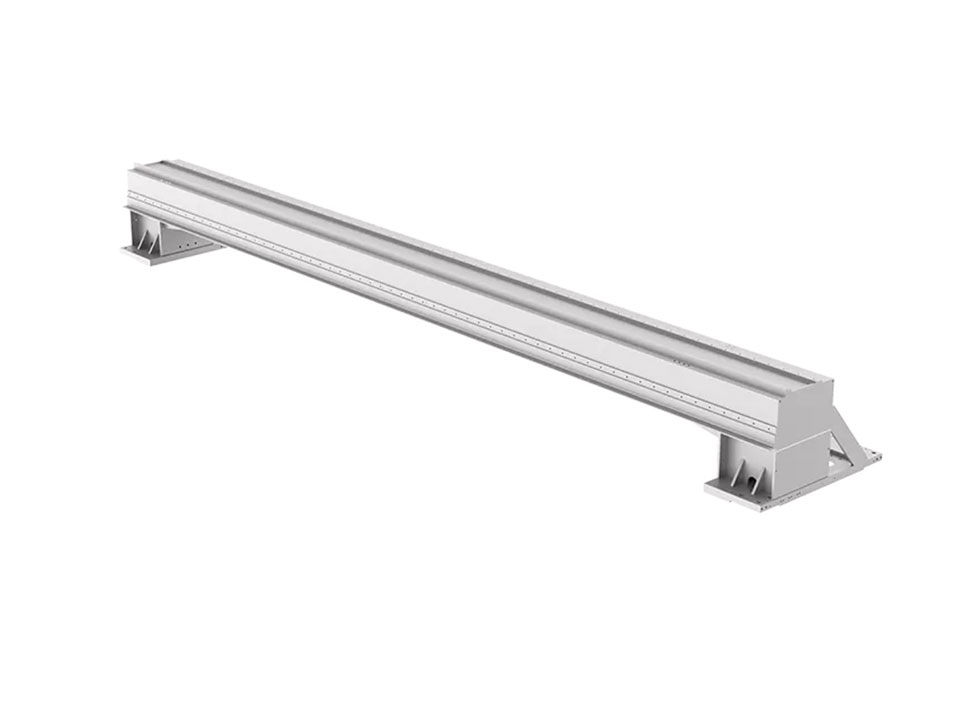

 | Brand-new Aluminum Beam The new fifth-generation 6-series aluminum beam has 20% less weight and 15% more torsional resistance than the previous generation. Lightweight design beams play a high dynamic performance of the equipment to improve processing efficiency. |

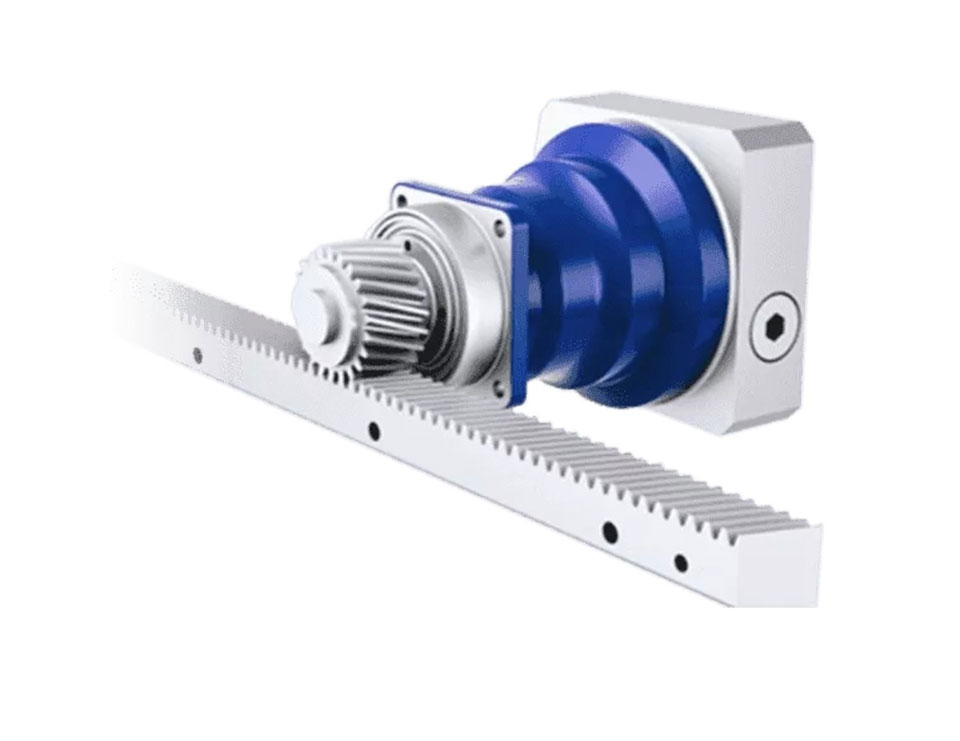

 | High-precision Transmission System Selected professional speed reducers, high-precision racks, guide rails and other accessories construct entire high-accuracy transmission system to ensure stable operations in long time. |

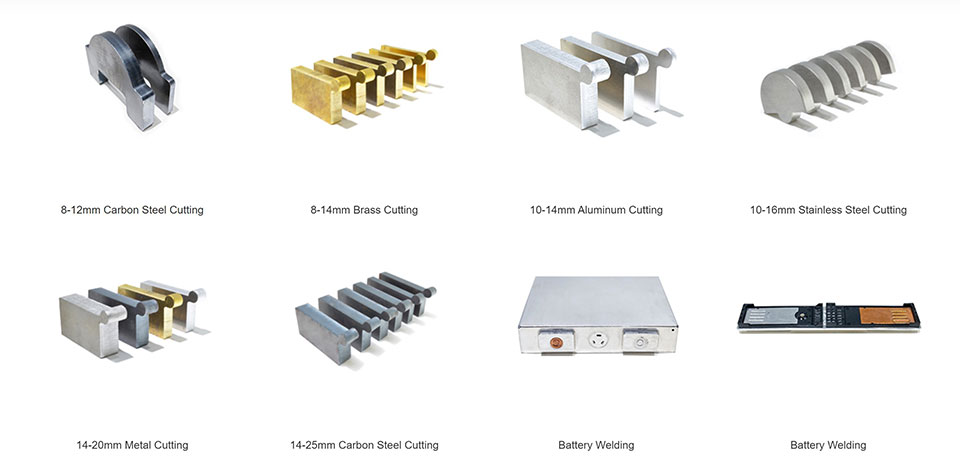

3. Cutting Sample:
4. Parameter:
NO. | Model | CIMF3015E | CIMF4020E | CIMF6020E |
1 | Working Area | 3000*1500mm | 4000*2000mm | 6000*2000mm |
2 | Laser Power | 3000W-30000W | ||
3 | Controller | Cypcut | ||
4 | Laser Cutting Head | Switzerland Raytools Cutting head | ||
5 | Driving System | Yaksaw Servo System | ||
6 | Position Accuracy | ±0.03mm/m | ||
7 | Maximum Speed | 120m/min | ||
8 | Acceleration Speed | 2.0G | ||
9 | Working Voltage | 3PH380V/50HZ/60HZ | ||
10 | Weight | 4800KG | 5800KG | 7800KG |
