Product Description

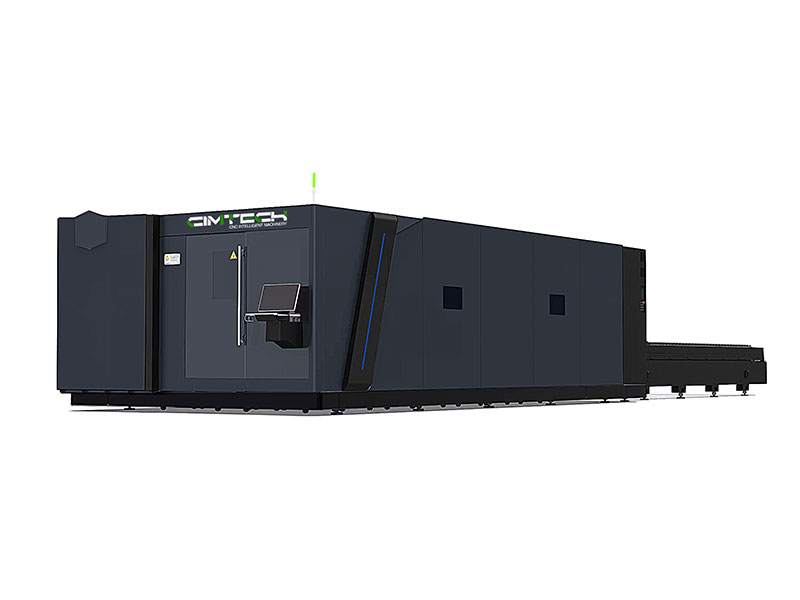

Fiber Laser Cutting Machine H Series
1. Video:
2. Main Configuration:

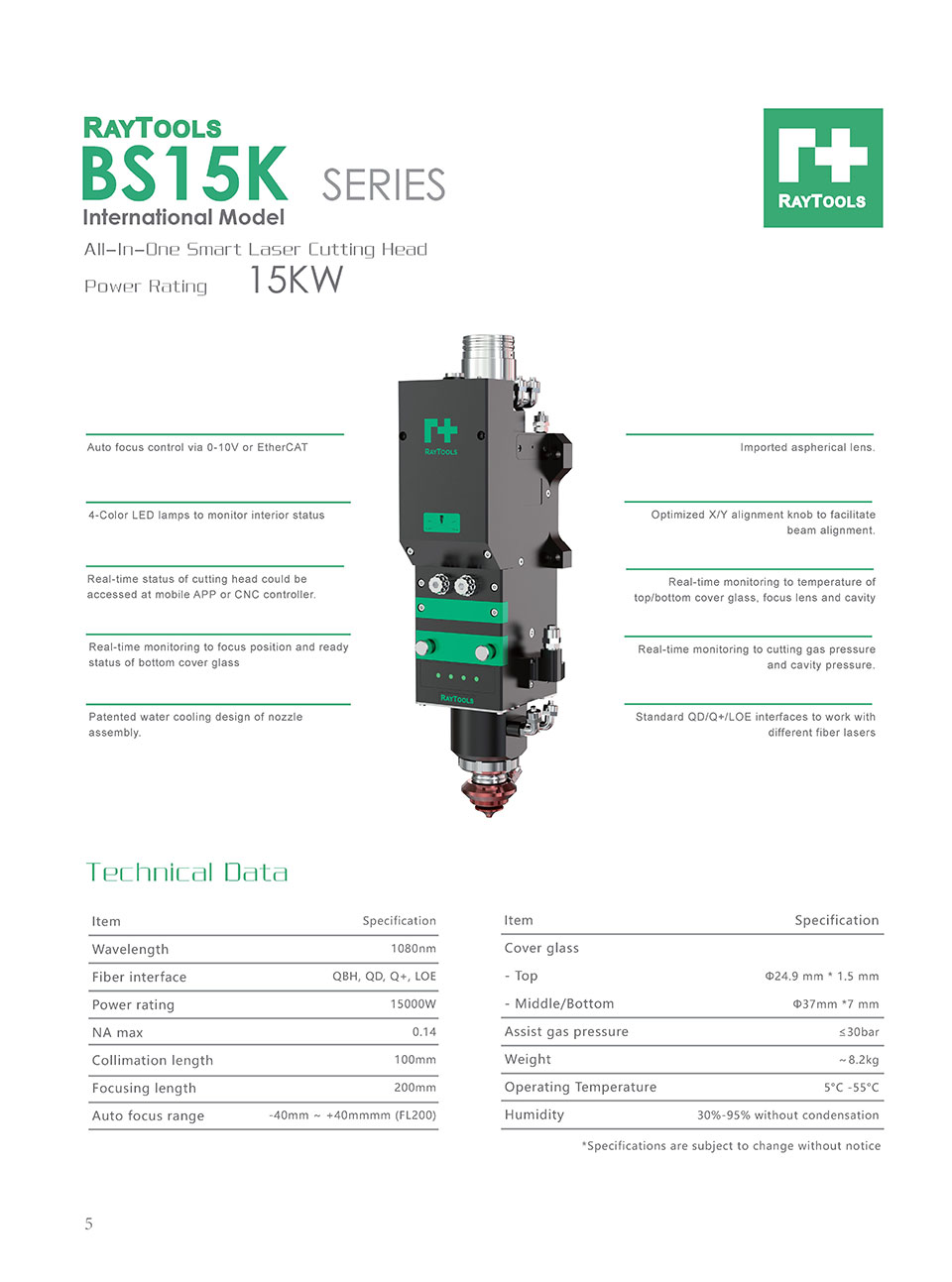

 | Autofocus Laser Cutting Head Without Manual Focusing The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting. Bigger Adjustment Range Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates. Long Service Life Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head |

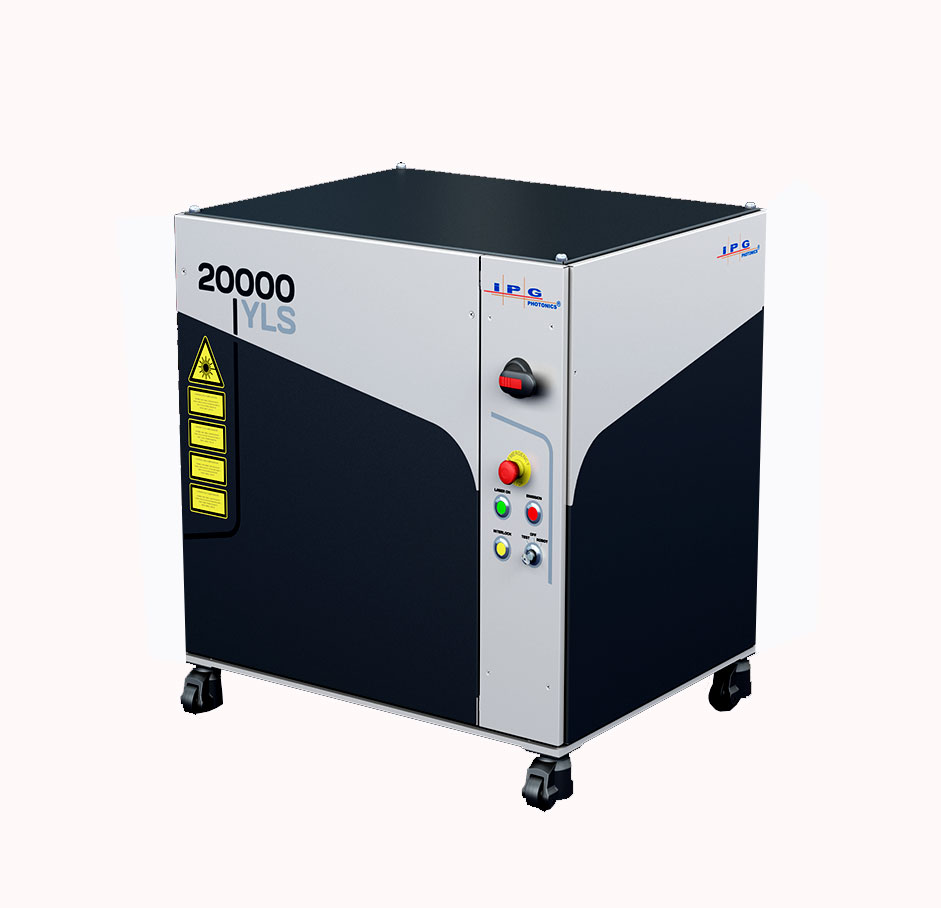

 | 20000W PG Fiber Lasers Source World Famous Brand CIMTECH laser cutting machine YLS-CUT series high power fiber laser of IPG. Powerful cutting ability with stainless steel, aluminum and other metal materials, cutting thickness is up to 40mm. Long Service Life The world leading IPG laser has stable performance, the service life can reach 100000 hours, and the overall quality of the equipment can be guaranteed safely. Stable Cutting Performance Fiber laser source can produce excellent beam quality, finer cutting lines, higher working efficiency and better machining quality. Fully closed constant temperature working environment makes laser source more effective to ensure the stable operation. |

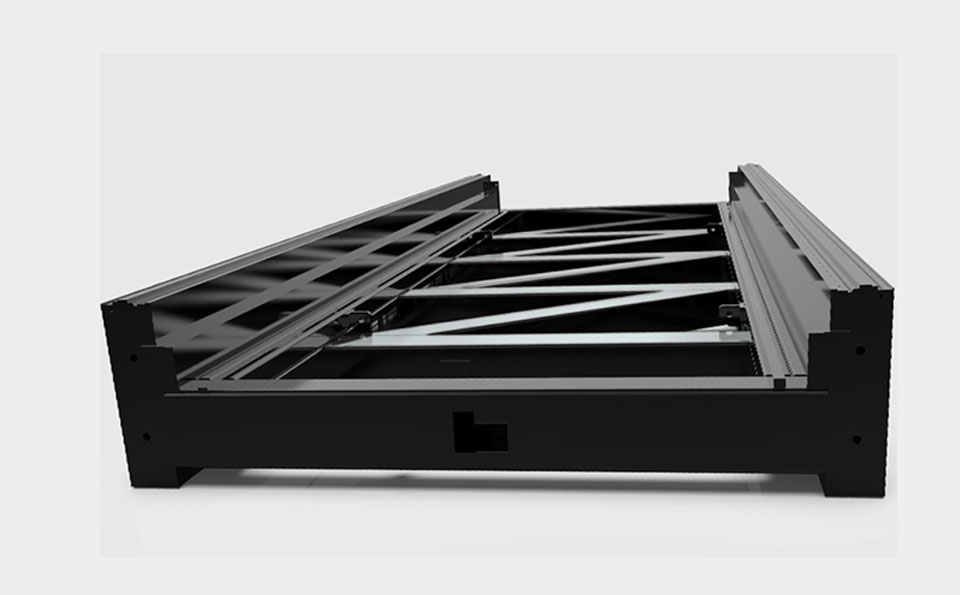

 | Frame It is welded by heavy steel plate, the current mainstream bed structure, high stability;Effect force annealing treatment, high mechanical strength, not easy to deform;Reinforcing ribs are arranged inside the bed to increase the strength and tensile resistance of the bed, and effectively avoid deformation of the bed; The weight of the bed, the small vibration of the machine, and the good shock resistance ensure the improvement of cutting accuracy. |

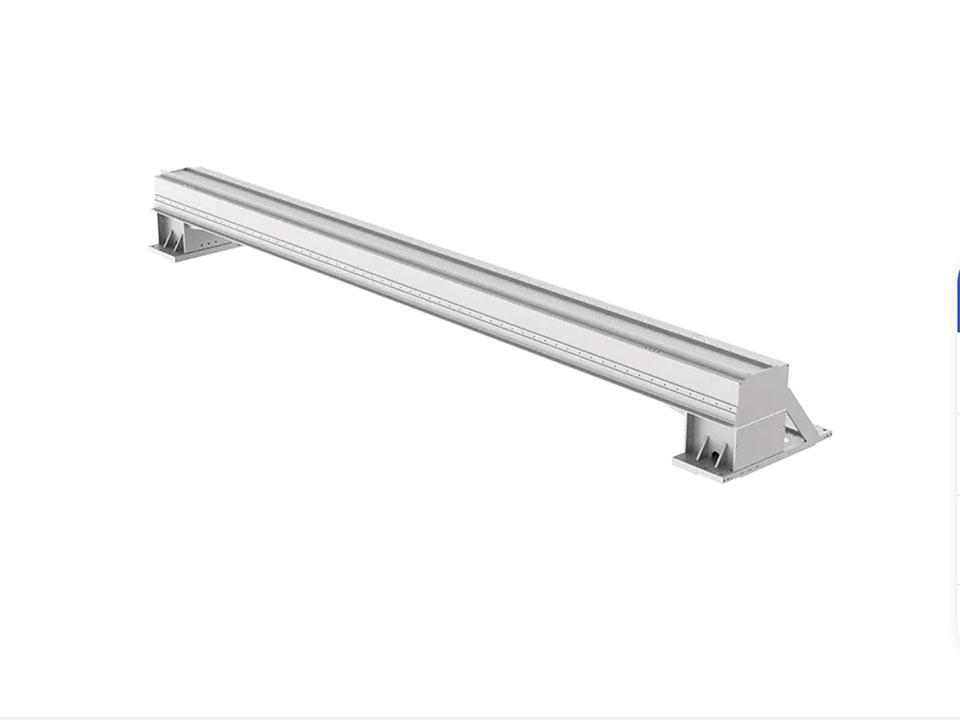

 | Brand-new Aluminum Beam The new fifth-generation 6-series aluminum beam has 20% less weight and 15% more torsional resistance than the previous generation. Lightweight design beams play a high dynamic performance of the equipment to improve processing efficiency. |

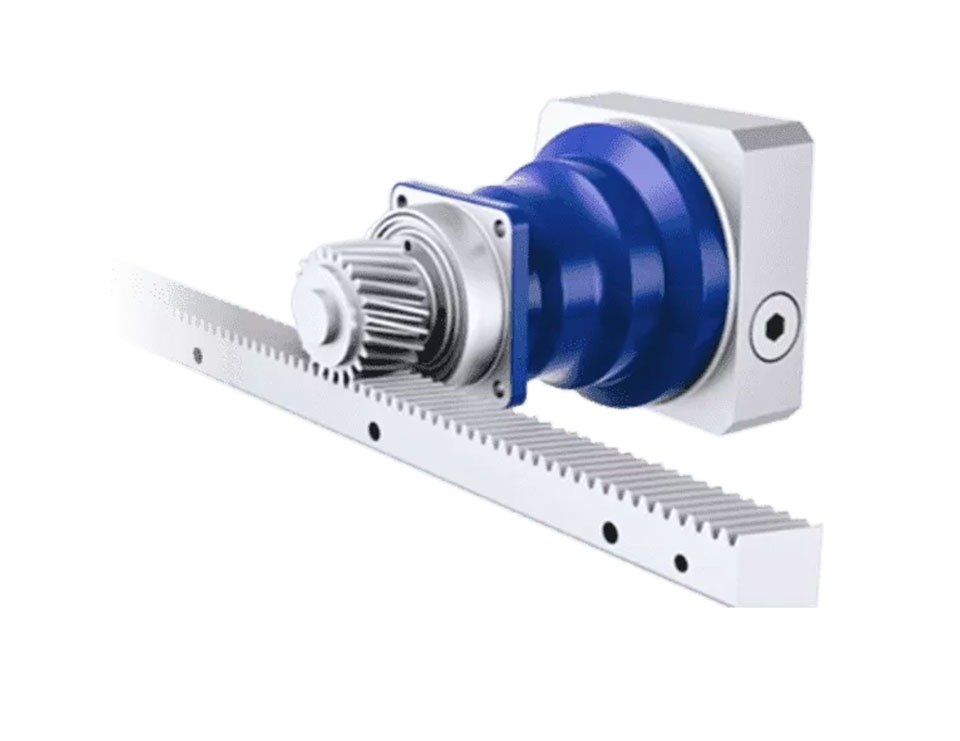

 | High-precision Transmission System Selected professional speed reducers, high-precision racks, guide rails and other accessories construct entire high-accuracy transmission system to ensure stable operations in long time. |

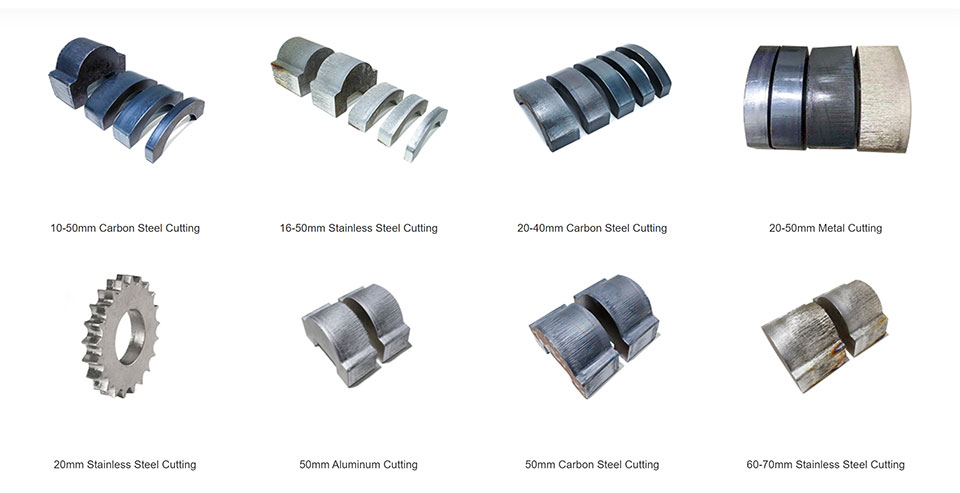

3. Cutting Sample:
4. Parameter:
NO. | Model | CIMF6025H | CIMF10025H | CIMF12025H |
1 | Working Area | 6000*2500mm | 10000*2500mm | 12000*2500 |
2 | Laser Power | 6000W -80000W | ||
3 | Driving System | Yaksaw Servo System | ||
4 | Position Accuracy | ±0.03mm/m | ||
5 | Maximum Speed | 120m/min | ||
6 | Max. Acceleration | 2.5G | ||
7 | Working Voltage | 3PH380V/50HZ/60Z | ||
