Product Description

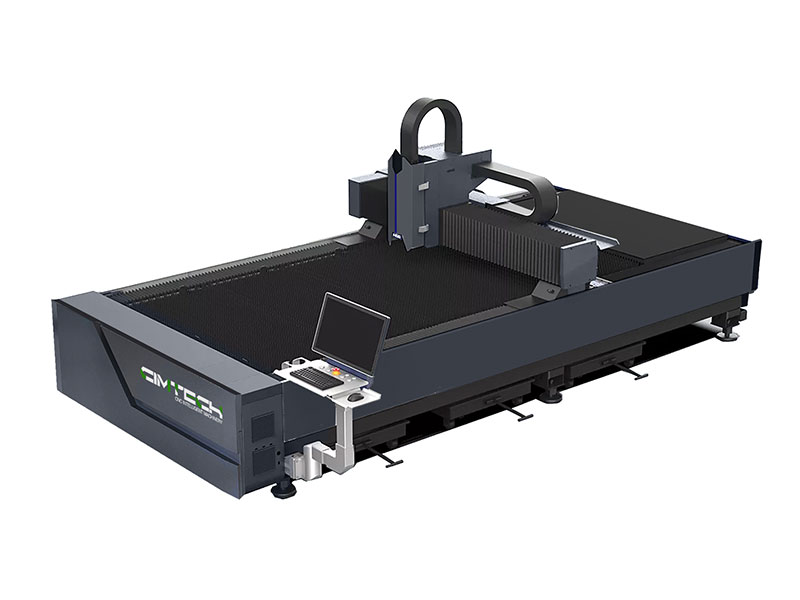

Fiber Laser Cutting Machine B Series
1. Video:
2. Main Configuration:

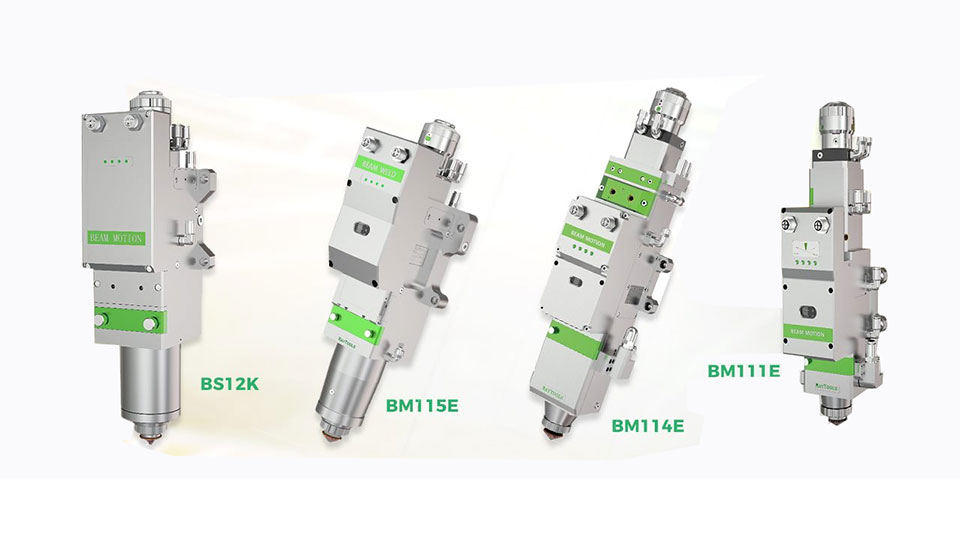

 | Autofocus Laser Cutting Head Without Manual Focusing The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting. Bigger Adjustment Range Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates. Long Service Life Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head. |

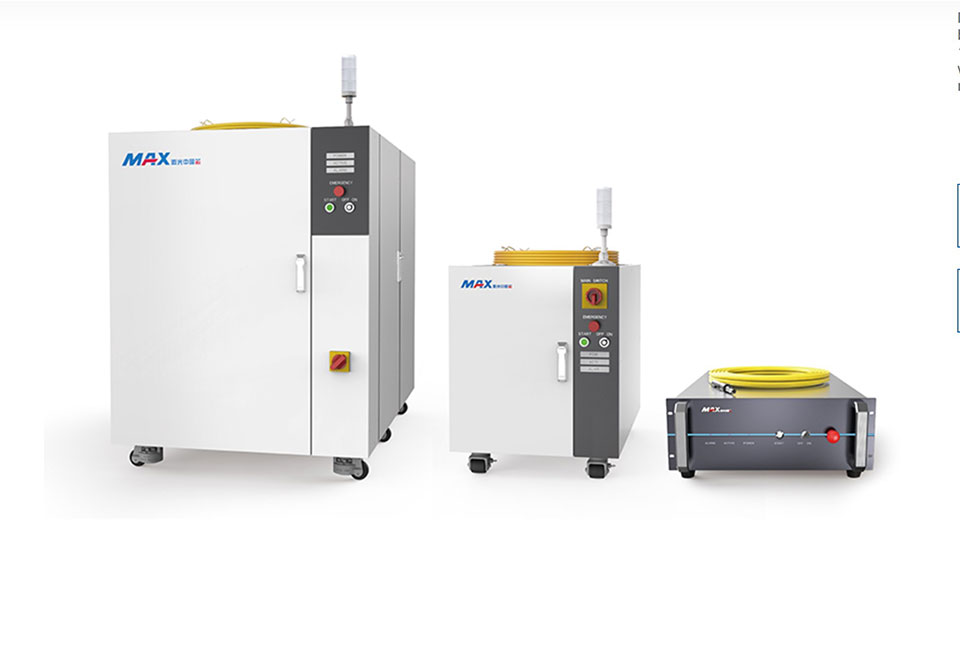

 | Laser Generator Laser Generator is high-power fiber laser with high electro-optical conversion efficiency, compact size, good beam quality and maintenance-free. It also takes into account the high-speed cutting of thin plates and the bright surface cutting of medium and thick plates, which greatly improves the perforation and cutting. Process quality such as welding, mainly used in metal drilling, cutting, welding and other fields such as new energy, 3C, precision machining. |

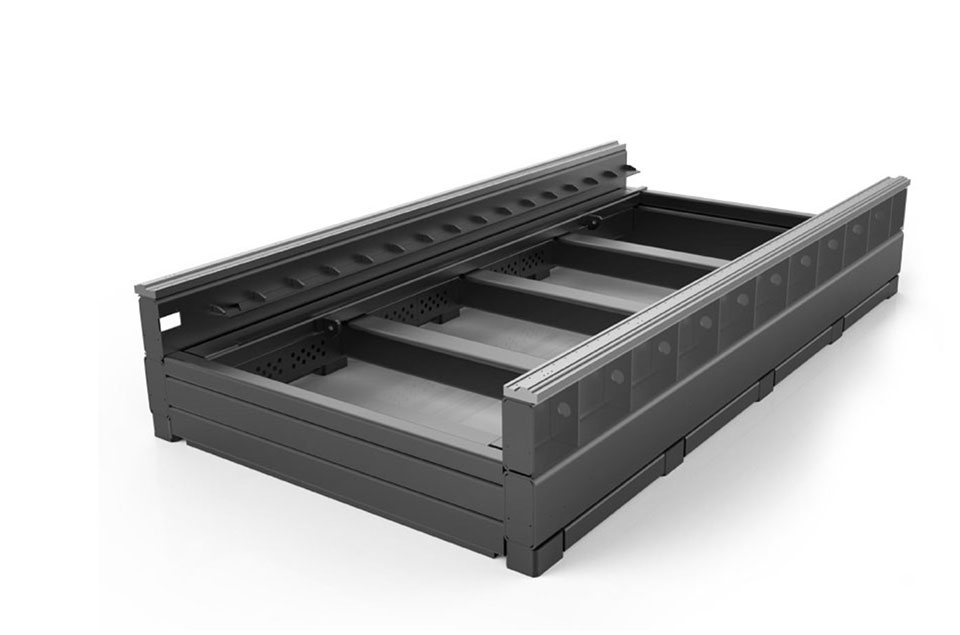

 | Upgraded Matrix Machine Bed with Level-up Rigidity Brand-new matrix machine and welding design of the cross-section improve the rigidity of entire machine bed structure significantly and decrease the negative influence on machine bed. |

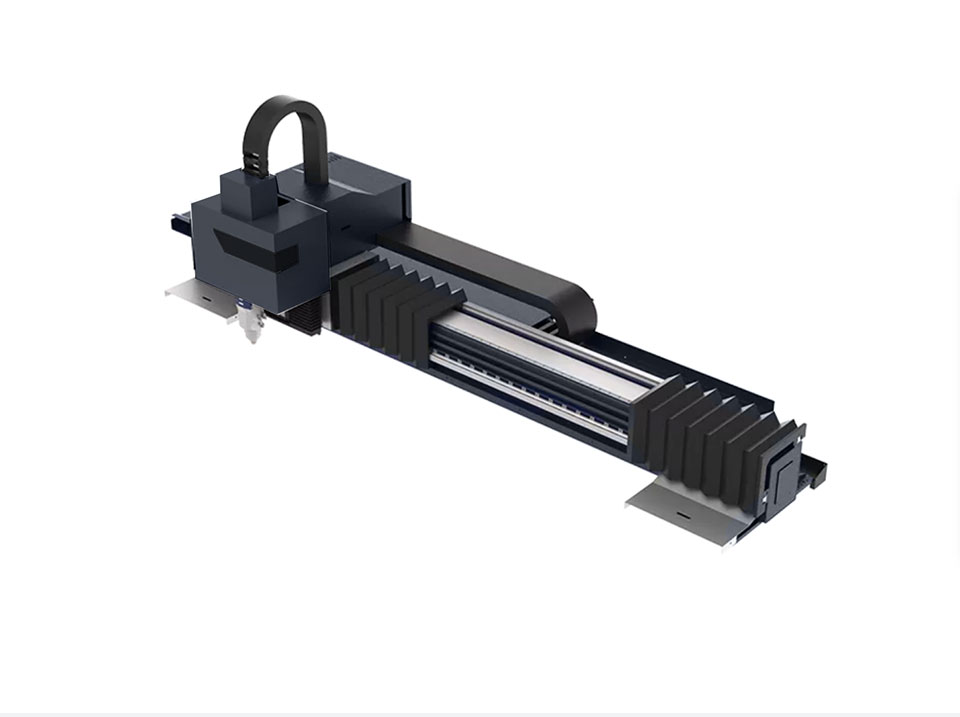

 | Brand-new Aluminum Beam The new fifth-generation 6-series aluminum beam has 20% less weight and 15% more torsional resistance than the previous generation. Lightweight design beams play a high dynamic performance of the equipment to improve processing efficiency. |

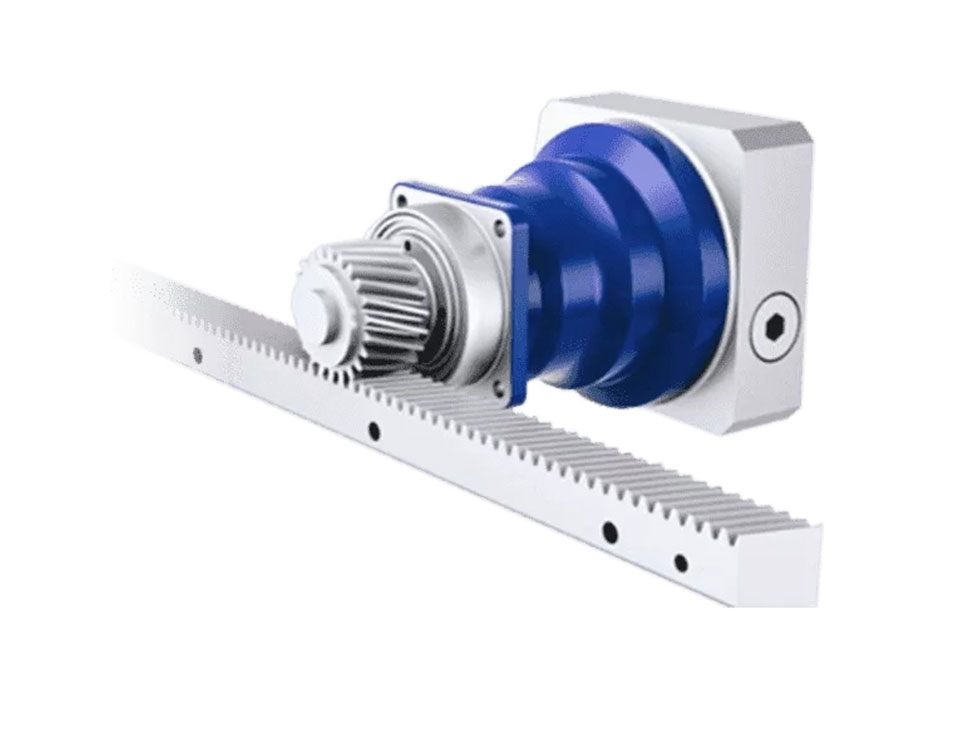

 | High-precision Transmission System Selected professional speed reducers, high-precision racks, guide rails and other accessories construct entire high-accuracy transmission system to ensure stable operations in long time. |

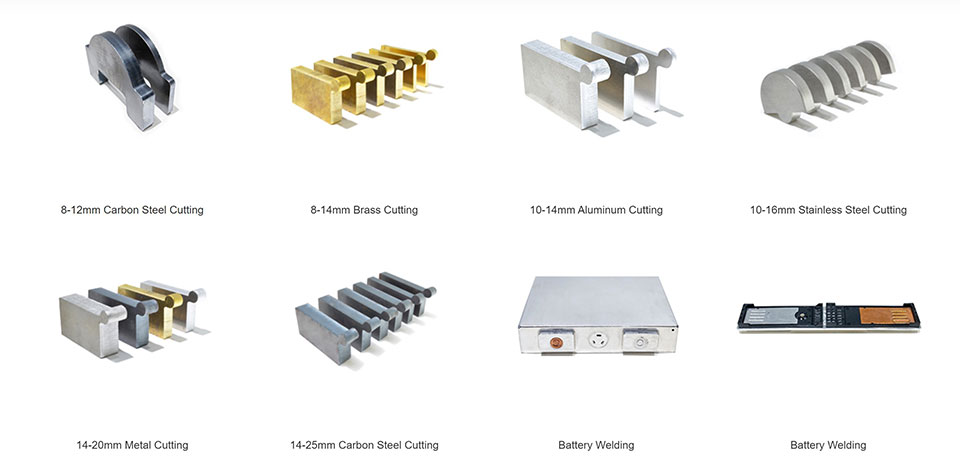

3. Cutting Sample:
4. Parameter:
NO. | Model | CIMF3015B | CIMF4020B | CIMF6020B | CIM6025B |
1 | Working Area | 3000*1500mm | 4000*2000mm | 6000*2000mm | 6000*2500mm |
2 | Laser Power | 1000W-30000W | |||
3 | Controller | Cypcut | |||
4 | Laser Cutting Head | Switzerland Raytools Cutting head | |||
5 | Driving System | Yaksaw Servo System | |||
6 | Position Accuracy | ±0.03mm/m | |||
7 | Maximum Speed | 100m/min | |||
8 | Acceleration Speed | 1.5G | |||
9 | Working Voltage | 3PH380V/50HZ/60HZ | |||
10 | Weight | 3500KG | 4500KG | 5500KG | 7500KG |
