Product Description

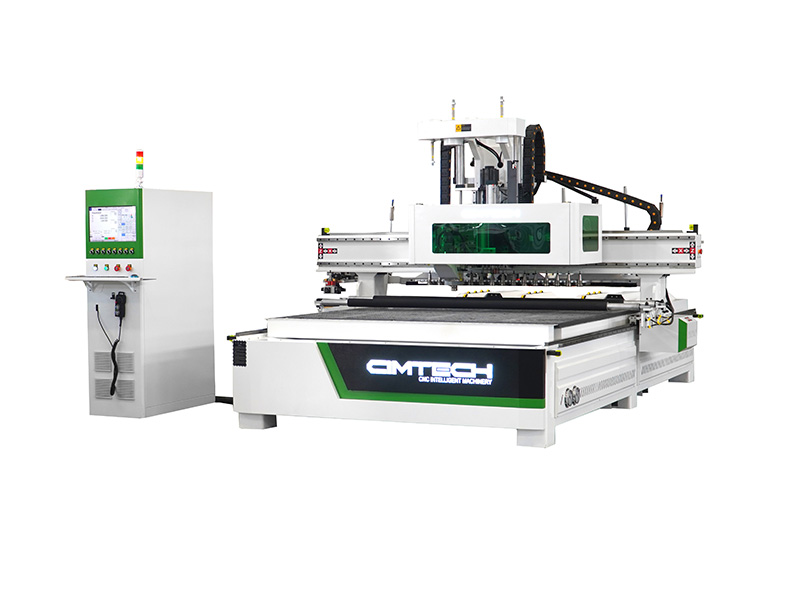

CNC ROUTER CIMC2143-ATC SSNPD Configurations:
| 1 | Spindle | 12.0KW HQD Air Cooling Spindle+Drilling Heads+Printer |
| 2 | Driving Motors and Drivers | X Axis: Weihong Servo Motor+ Weihong Servo Driver |
| Y Axis: Weihong Servo Motor+ Weihong Servo Driver | ||
| Z Axis: Weihong Servo Motor+ Weihong Servo Driver+Brake | ||
| 3 | Control System | Weihong PC Control System |
| 4 | Reducer | Shimpo Reducers (X Axis=1 Set, Y Axis=2 Sets) |
| 5 | Rails | High Precision Square Rails（X/Z=25mm, Y=30mm） |
| 6 | Blocks | High Precision Blocks（X/Z=25mm, Y=30mm） |
| 7 | Ball Screw | High Precision Designed |
| 8 | Rack and Opinion | High Precision Designed |
| 9 | Tool Storage | 16 Linear Tool Storage (16 Pieces Tool Holders Included) |
| 10 | Machine Structure | Heavy Duty Structure and Strong Structure |
| 11 | Working Table | Vacuum Working Table |
| 12 | Electronics | France Schneider Brands |
| 13 | Pop-up Stops | Included |
| 14 | Tool Sensor | Automatic Tool Sensors Included |
| 15 | Dust Collector | 7.5KW Double Bags Dust Collectors |
| 16 | Vacuum Pump | 7.5KW Air Vacuum Pump (2 sets) |
CNC ROUTER CIMC2143-ATC SSNPD Parameters:
| 1 | Max. Engraving Area | 2100*4300*300mm |
| 2 | Acceptable Material Thickness | 180mm |
| 3 | Working Table Size | 2100mm*4300mm |
| 4 | Processing Resolution | ±0.2mm |
| 5 | Re-positioning Resolution | ±0.3mm |
| 6 | Spindle Rotating Speed | 24000rpm |
| 7 | Transmitting System | X\Y Axis Rack and Opinion+ Square Guide; Z Axis Ball Screw+ Square Guide |
| 8 | Empty Traveling Speed | ≥60000mm/min |
| 9 | Processing Speed | ≥20000mm/min |
| 10 | Spindle Quantity | 1 Spindle |
| 11 | Format | G Code |
| 12 | Voltage | 3 Phase 380V 50HZ |
| 13 | Net Weight | 3760KG |
| 14 | Packing Size | 5600*2290*2300mm |
