Product Description

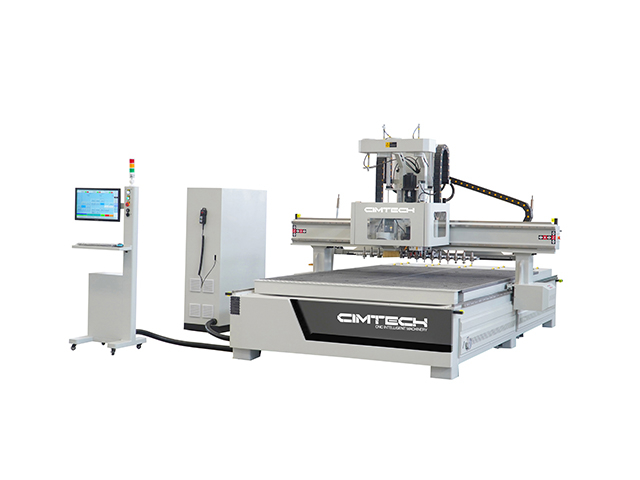

CIMTECH CIMC2130-ATC Main Configuration:
1 | Spindle | 9.0KW HSD Spindle+ HSD Drilling Heads(5+4) |
2 | Driving Motors and Drivers | X Axis: Syntec Servo Motor+ Syntec Servo Driver |
Y Axis: Syntec Servo Motor+ Syntec Servo Driver | ||
Z Axis: Syntec Servo Motor+ Syntec Servo Driver+Brake | ||
3 | Control System | Original Syntec PC Control System(24) |
4 | Reducer | Shimpo Reducers (X Axis=1 Set, Y Axis=2 Sets) |
5 | Rails | High Precision Taiwan CSK Square Rails（X/Z=25mm, Y=30mm） |
6 | Blocks | High Precision Taiwan CSK Blocks（X/Z=25mm, Y=30mm） |
7 | Ball Screw | High Precision Designed Ball Screw |
8 | Rack and Opinion | High Precision Designed Helical Tooth |
9 | Tool Storage | 16 Linear Tool Storage (16 Pieces Tool Holders Included) |
10 | Machine Structure | Heavy Duty Structure and Strong Structure (Double Strengthened Structure) |
11 | Working Table | Vacuum Working Table |
12 | Electronics | Original France Schneider Brands |
13 | Pop-up Stops | Included |
14 | Tool Sensor | Automatic Tool Sensors Included |
15 | Dust Collector | 7.5KW Double Bags Dust Collectors |
16 | Vacuum Pump | 5.5KW Becker Vacuum Pump(2Sets) |
CNC ROUTER CIMC2130-ATC Parameter:
1 | Max. Engraving Area | 2100*3000*300mm |
2 | Acceptable Material Thickness | 180mm |
3 | Working Table Size | 2100mm*3000mm |
4 | Processing Resolution | ±0.2mm |
5 | Re Positioning Resolution | ±0.3mm |
6 | Spindle Rotating Speed | 24000rpm |
7 | Transmitting System | X\Y axis Rack and Opinion+ Square guide; Z axis ball screw+ Square guide |
8 | Empty Traveling Speed | ≥60000mm/min |
9 | Processing Speed | ≥20000mm/min |
10 | Spindle Quantity | 1 Spindle |
11 | Format | G Code |
12 | Voltage | 3 Phase 380V 50HZ |
13 | Net Weight | 3540KG |
14 | Packing Size | 4400mm*2290mm*2550mm |
