Product Description

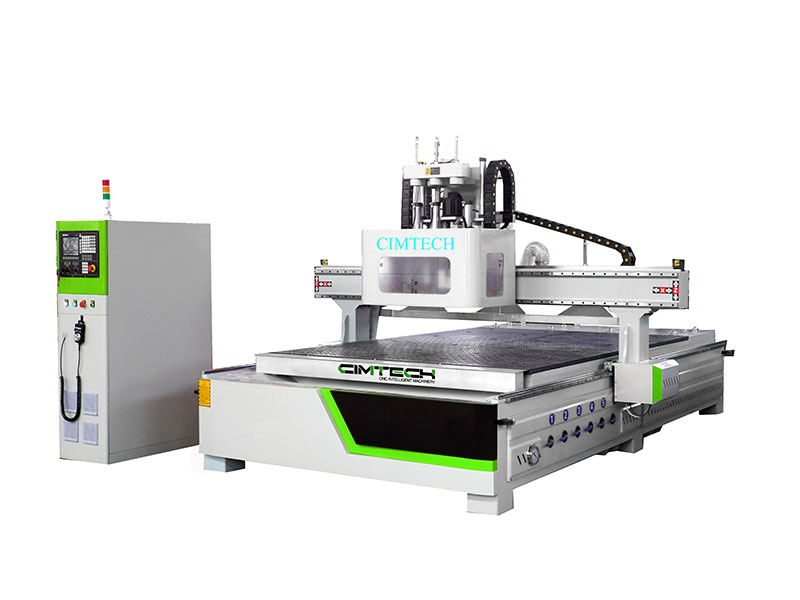

CNC ROUTER CIMN2030-3S
Video:
Main Configuration and Parameter:
NO. | Model | CIMN2030-3S |
1 | Working Area | 2100*3000*180mm |
2 | Tool Changing | 6.0KW*2（2Spindles）+ CC Drilling Banks(5+4) |
3 | Spindle | 6.0KW HQD Spindle*2(2 Sets) |
4 | Controller | NK280B Controller |
5 | Motors and Driver | Taiwan Delta Servo System |
6 | Reducer | Taiwan Delta Servo System |
7 | Transmission System | 2M High Precision Helical Rack |
8 | Square Rails and Bearings | Original Taiwan HIWIN Brand |
9 | Pop-up Stops | 6+4 (Y Axis+ X Axis) |
10 | Electronics | Original Schneider Electronics |
11 | Inverter | Fuling Inverter |
12 | Working Table | Vacuum Table（Option: T-slot + Vacuum Combined Table） |
13 | Lubrication System | Automatic Mode |
14 | Frame and Gantry | Heavy Duty Model with Double Painting |
15 | Pushing Bar+ Dust Collecting System | Included |
16 | Press Roller | Options |
17 | Loading Table | Options |
18 | Automatic unloading Table | Options |
19 | Label Machine | Options |
20 | Empty Traveling Speed | ≥70000mm/min |
21 | Processing Speed | ≥20000mm/min |
22 | Format | G code |
23 | Voltage | 3 Phase 380V, 50HZ/60HZ |
24 | Net Weight | 2750KG |
25 | Packing Size | 4450mm*2290mm*2050mm |
