Product Description

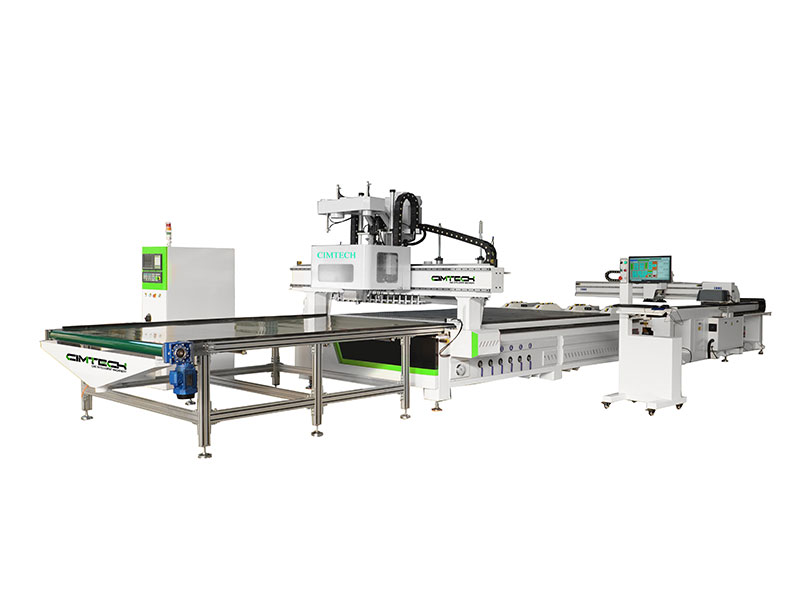

CNC ROUTER CIMN2030F-ATC
Video:
Main Configuration and Parameter:
NO. | Model | CIMN2030F-ATC |
1 | Working Area | 2100*3000*180mm |
2 | Tool Storage | 16 Pieces Linear ATC |
3 | Spindle | 9.0KW Italy HSD Spindle+ Italy HSD Drilling Banks (5+4) |
4 | Controller | Syntec Controller |
5 | Motors and Driver | Japanese Yaskawa Servo System |
6 | Reducer | Japanese Shimpo Reducers |
7 | Transmission System | 2M High Precision Helical Rack |
8 | Square Rails and Bearings | Original Taiwan HIWIN Brand |
9 | Pop-up Stops | 6+4 (Y Axis+ X Axis) |
10 | Electronics | Original Schneider Electronics |
11 | Inverter | 11.0KW Delta Inverter |
12 | Working Table | Vacuum Table（Option: T-slot + Vacuum Combined Table） |
13 | Lubrication System | Automatic Mode |
14 | Frame and Gantry | Heavy Duty Model with Double Painting |
15 | Pushing Bar+ Dust Collecting System | Included |
16 | Press Roller | Options |
17 | Loading Table | Included |
18 | Automatic unloading Table | Included |
19 | Label Machine | Included |
20 | Empty Traveling Speed | ≥80000mm/min |
21 | Processing Speed | ≥20000mm/min |
22 | Format | G code |
23 | Voltage | 3 Phase 380V, 50HZ/60HZ |
24 | Net Weight | 5550KG |
25 | Packing Size | 11500mm*2290mm*2050mm |
