Product Description

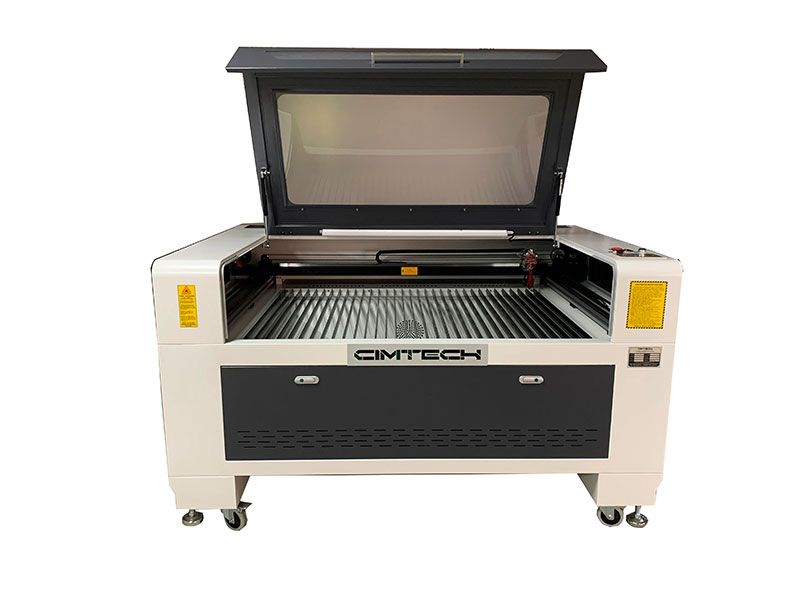

Laser Cutting Machine CIM6090
Video:
Main Configuration and Parameters:
1 | Laser Power: | Reci W2 Laser Tube 80W（Summit Power 100W） |
2 | Laser tube life Span | 10000 working/hour |
3 | Main board | RUIDA Board |
4 | Applicable Materials | Acrylic, Glass, crystal, wood, leather, cloth, rubber, marble, ceramic, etc |
5 | Working area: | 600*900mm |
6 | Max moving speed: | 500mm/s |
7 | Laser energy control: | 1-100℅ set by hand or software |
8 | Worktable: | Knife Working Table+ Honeycomb Table |
9 | Locating precision: | <0.01 mm |
10 | Min shaping character: | Character: 1*1 mm,; letter: 0.50*0.50 mm |
11 | Operating temperature: | 5℃-35℃ |
12 | Resolution ratio: | ≦4500 dpi |
13 | Laser type: | CO2 glass tube |
14 | Power supply: | AC220±10℅ 60 HZ/AC110±10℅60 HZ |
15 | Data transfer interface: | USB Cable/U-Flash |
16 | System environment: | WINDOWS 2000/WINDOWS XP/MAC/Vista/WIN7/WIN8 |
17 | Protect System | Water protect system Have |
18 | Cooling way: | Water cooling way |
19 | Graphic format supported: | The file which Corel Draw, CAD. identify(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG, DXP,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM). |
20 | Packing Size | 1570*1070*790mm(L*W*H) |
21 | Weight | 250KG |
