Product Description

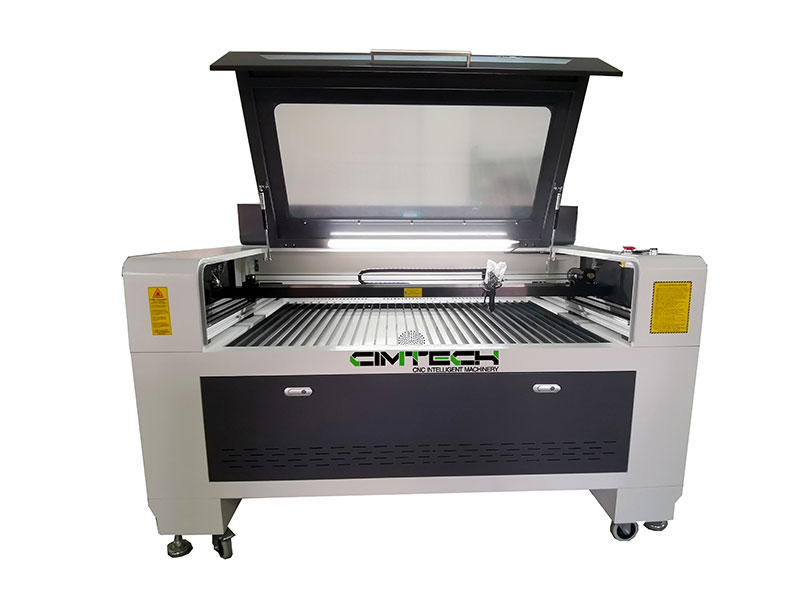

Laser Cutting Machine CIM1390
Video:
Main Configuation and Parameters:
NO. | Model | CIM1390 |
1 | Laser power | Yongli Laser |
2 | Laser type | CO2 sealed laser tube |
3 | Working bed | 1300 X900mm |
4 | Cooling | CW5200 water chiller |
5 | Laser power control | 1-100% software control |
6 | Electricity | AC 110-220V±10%, 60Hz |
7 | Temperature | 0°-45°C |
8 | Operating Humidity | 5%-95% |
9 | Supported software | DST PLT BMP DXF AI |
10 | format and software | CORELDRAW, PHOTOSHOP, AUTOCAD, All |
11 | Driver | High precision three phase step motor |
12 | Platform | Honeycomb worktable(Option: Up and Down Table) |
13 | Guide rail | High precision |
14 | Control system | RD control system |
15 | Voltage | 220V50HZ/60HZ |
16 | Weight | 400KG |
17 | Packing Size | 1990*1540*1260mm(L*W*H) |
