Product Description

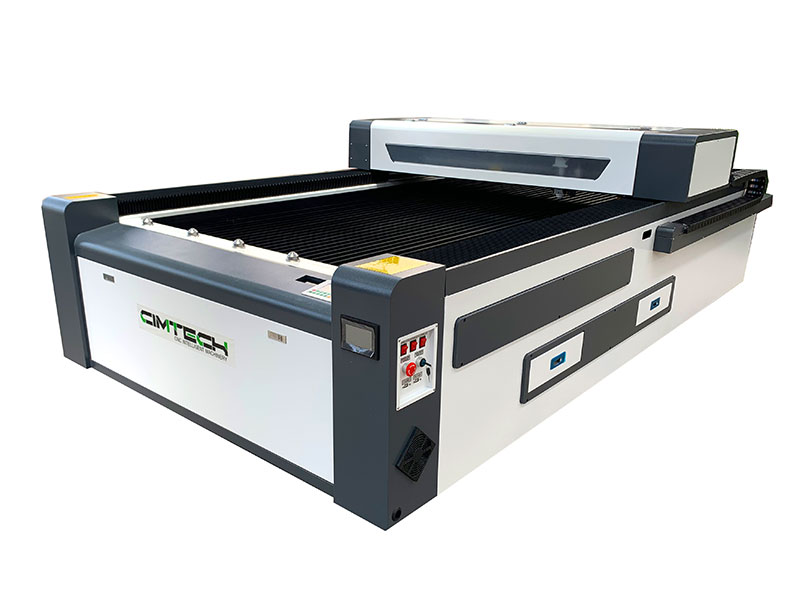

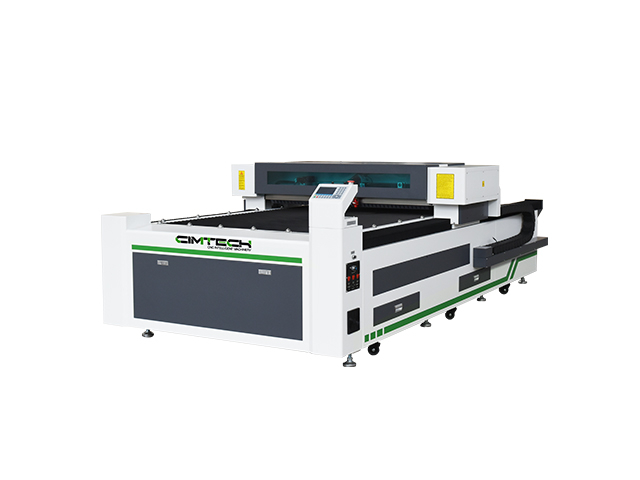

LASER CUTTING MACHINE CIM1325 Main Parts:
1 | Control System | Original Ruida Control System |
2 | Laser Tube | Original SLW LASER TUBE(Summit Power 300W) |
3 | Working Table | Knife Working Table |
4 | Water Chiller | Industrial CW6000 |
5 | Mirrors and Lens | Original USA Brands |
6 | Flash Drive | Offline working with USB Flash Drive |
7 | Driving Motors | High Speed Motors and Powerful Drivers |
8 | Cutting Head | High Precision Laser Cutting Head |
9 | Square Rails | Original Taiwan Square Rails |
10 | Transmitting System | Rack and Opinion Transmitting for X Y Axis, Knife Working Tables |
11 | Others | Software, with all tools ,Extra 1 Pair Lens |
LASER CUTTING MACHINE CIM1325 Parameters:
NO. | Model | CIM1325 |
1 | Laser power | Original SLW LASER TUBE(Summit Power 300W) |
2 | Laser type | CO2 sealed laser tube |
3 | Working bed | 1300 *2500mm |
4 | Cooling | CW6000 water chiller |
5 | X/Y Axis Positioning Precision | ≤±0.2mm |
6 | X/Y Axis Positioning Precision | ≤±0.2mm |
7 | Temperature | 0°-45°C |
8 | Cutting Thickness | ＜20mm Acrylic |
9 | Supported software | DST PLT BMP DXF AI |
10 | format and software | CORELDRAW, PHOTOSHOP, AUTOCAD, All |
11 | Driver | High precision three phase step motor |
12 | Guide rail | Square brand |
13 | Control system | RD control system |
14 | Voltage | 220V 50HZ |
15 | Weight | 1050KG |
16 | Package Size | 3900*2100*1250mm(L*W*H) |
