Product Description

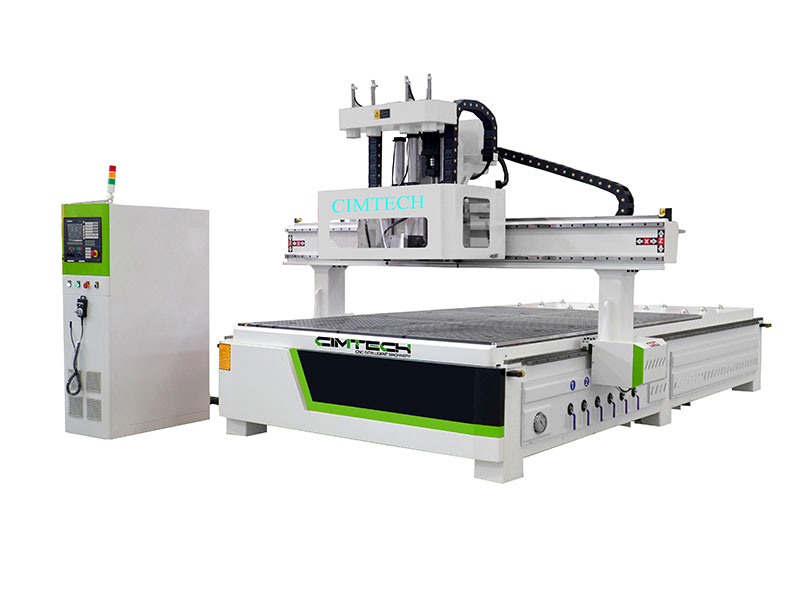

CNC ROUTER CIMN2030H-3S
Video:
Main Configuration and Parameter:
NO. | Model | CIMN2030H-3S |
1 | Working Area | 2100*3000*300mm |
2 | Tool Changing | 6.0KW*2(2 Sets) + 4.5KW(2 Sets) (3 Spindles can change to work automatically) |
3 | Spindle | 6.0KW HQD Spindle*2(2Sets)+ 4.5KW Horizontal Spindle(1 Set) |
4 | Controller | NK280B Controller |
5 | Motors and Driver | Taiwan Delta Servo System |
6 | Reducer | Taiwan Delta Servo System |
7 | Transmission System | 2M High Precision Helical Rack |
8 | Square Rails and Bearings | Original Taiwan HIWIN Brand |
9 | Horizontal Spindle | The spindle with Double Cutting Bits |
10 | Electronics | Original Schneider Electronics |
11 | Inverter | Fuling Inverter |
12 | Working Table | Vacuum Table（Option: T-slot + Vacuum Combined Table） |
13 | Lubrication System | Automatic Mode |
14 | Frame and Gantry | Heavy Duty Model with Double Painting |
15 | Empty Traveling Speed | ≥60000mm/min |
16 | Processing Speed | ≥20000mm/min |
17 | Format | G code |
18 | Voltage | 3 Phase 380V, 50HZ/60HZ |
19 | Net Weight | 2750KG |
20 | Packing Size | 4250mm*2290mm*2050mm |
