Product Description

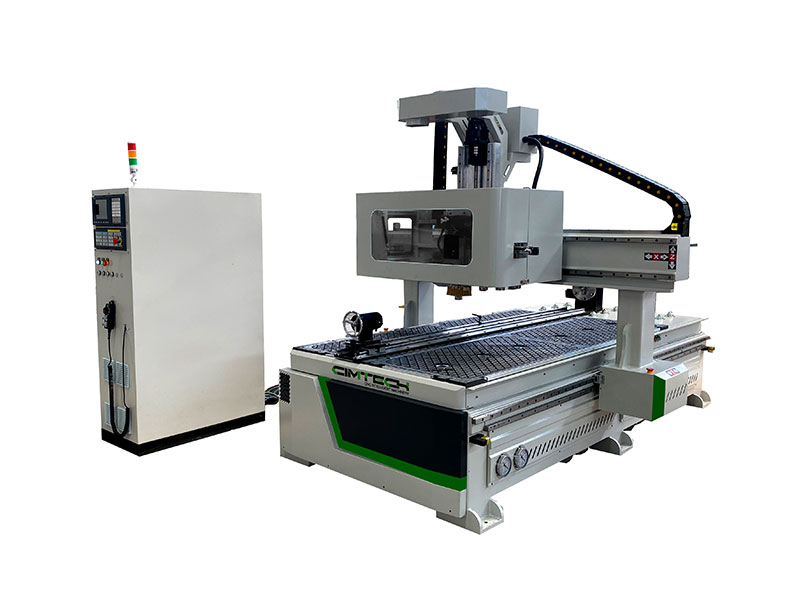

CNC ROUTER CIMC1325R-ATC
Video:
Main Configuration and Parameter:
NO. | Model | CIMC1325R-ATC |
1 | Working Area | Flat Table Working Size: 1300*2500*200mm |
Rotary Axis Working Size: 200*200mm (Max. Diameter*Max. Length) | ||
2 | Tool Storage | 12 Pieces Carousel ATC |
3 | Spindle | 9.0KW Italy HSD Spindle |
4 | Controller | Syntec 60W-E Controller |
5 | Motors and Driver | Japanese Yaskawa System |
6 | Reducer | Japanese Shimpo Reducers |
7 | Transmission System | 2M High Precision Helical Rack |
8 | Square Rails and Bearings | Original Taiwan HIWIN Brand |
9 | Pop-up Stops | 4+3(Y Axis+ X Axis) |
10 | Electronics | Original Schneider Electronics |
11 | Inverter | 11.0KW Delta Inverter |
12 | Working Table | T-slot + Vacuum Combined Table（Option: Vacuum Table） |
13 | Lubrication System | Automatic Mode |
14 | Frame and Gantry | Heavy Duty Model with Double Painting |
15 | Empty Traveling Speed | ≥80000mm/min |
16 | Processing Speed | ≥20000mm/min |
17 | Format | G code |
18 | Voltage | 3 Phase 380V, 50HZ/60HZ |
19 | Net Weight | 2150KG |
20 | Packing Size | 3350mm*2280mm*2050mm |
