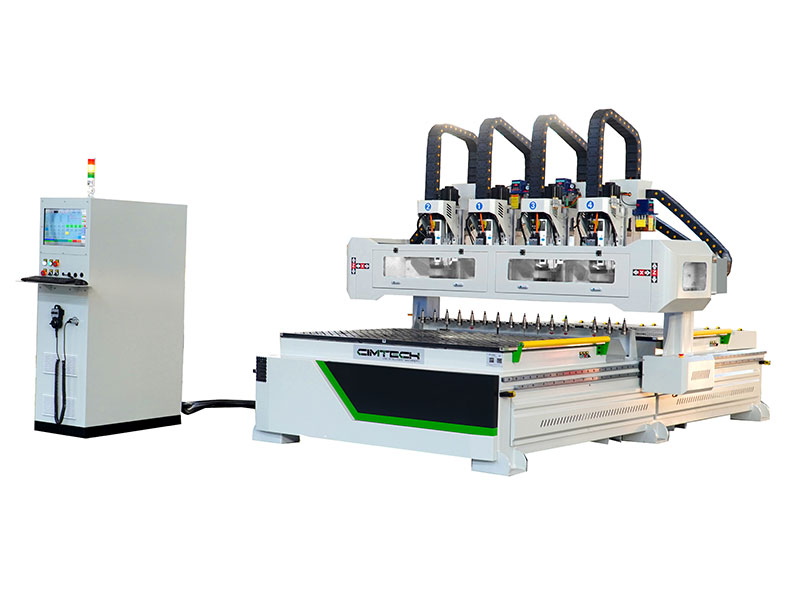

CNC ROUTER CIMC1813DW-ATC

1

Working Area

1800*1300*300mm*2 (2 Tables)

2

Tool Changing

9.0KW*4(4 Sets Separated Spindles) （Automatic Tool Changing）

3

Spindle

9.0KW HQD Spindle*4(4 Sets)

4

Controller

Syntec Controller

5

Motors and Driver

Taiwan Syntec Servo System

6

Reducer

Taiwan Syntec Servo System

7

Transmission System

2M High Precision Helical Rack

8

Square Rails and Bearings

Original Taiwan HIWIN Brand

9

Dust Collecting Shelf System

Included

10

Electronics

Original Schneider Electronics

11

Inverter

11.0KW Fuling Inverter*4(4 Sets)

12

Working Table

T-slot + Vacuum Combined Table

13

Lubrication System

Automatic Mode

14

Frame and Gantry

Heavy Duty Model with Double Painting

15

Empty Traveling Speed

≥60000mm/min

16

Processing Speed

≥20000mm/min

17

Format

G code

18

Voltage

3 Phase 380V, 50HZ/60HZ

19

Net Weight

3250KG

20

Packing Size

3500mm*2290mm*2050mm
