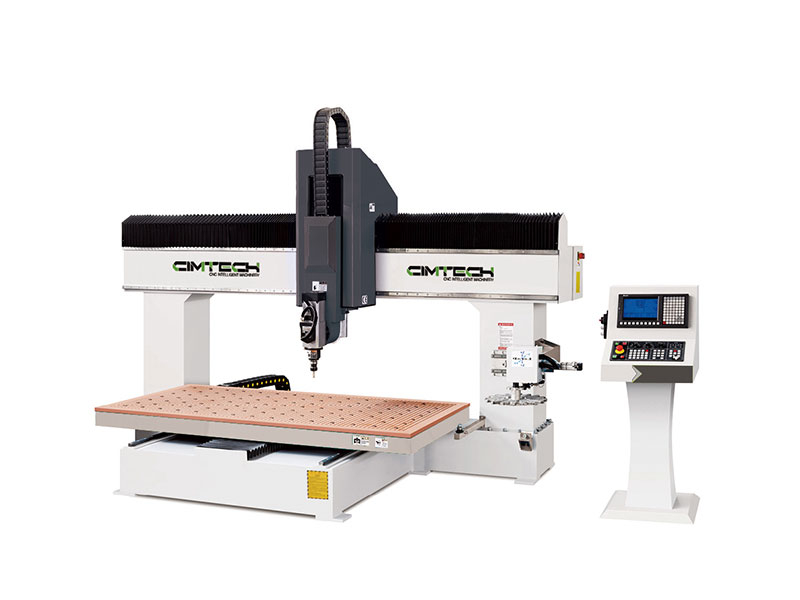

CNC ROUTER CIMD2513-ATC

1

Working Area

2500*1300*400mm

2

Tool Storage

12 Pieces Carousel ATC

3

Spindle

9.0KW Italy HSD Spindle

4

Controller

Syntec 4 Axis Controller

5

Motors and Driver

Japanese Yaskawa Servo System

6

Reducer

Japanese Shimpo Reducers + Industrial Reducer

7

Transmission System

Ball Screw Transmission (X/Y/Z Axis)

8

Square Rails and Bearings

Original Taiwan HIWIN Brand

9

Pop-up Stops

/

10

Electronics

Original Schneider Electronics

11

Inverter

11.0KW Delta Inverter

12

Working Table

Vacuum Table

13

Lubrication System

Automatic Mode

14

Frame and Gantry

Heavy Duty Model with Double Painting

15

Empty Traveling Speed

≥80000mm/min

16

Processing Speed

≥20000mm/min

17

Format

G code

18

Voltage

3 Phase 380V, 50HZ/60HZ

19

Net Weight

2500KG

20

Packing Size

3800mm*2280mm*2550mm
