Product Description

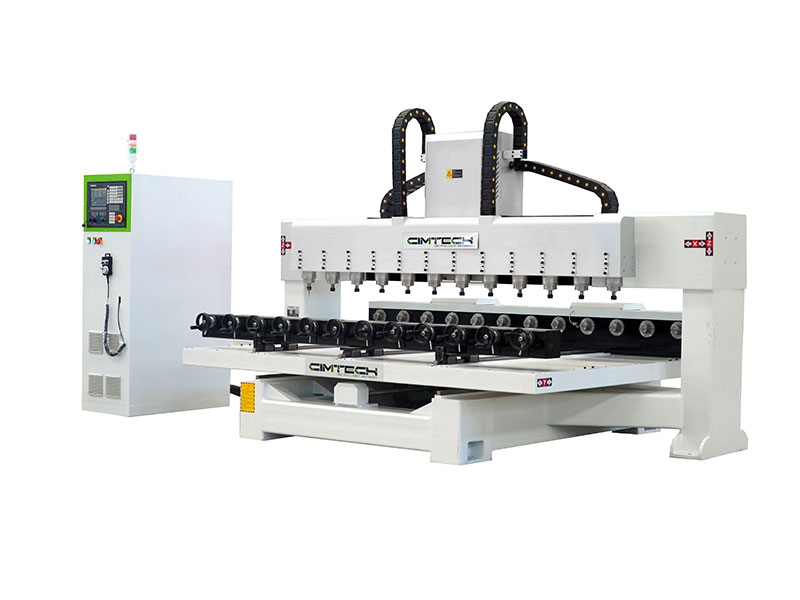

CNC ROUTER CIMD2012-12S
Video:
Main Configuration：
1 | Spindle | 3.2KW Water Cooling Spindle (12 Spindles, Good Quality Model) |
2 | Driving Motors | X Axis: Original Yaskawa Servo Motors+ Original Yaskawa Servo Drivers |
Y Axis: Original Yaskawa Servo Motors+ Original Yaskawa Servo Drivers | ||
Z Axis: Original Yaskawa Servo Motors+ Original Yaskawa Servo Drivers+ Brake | ||
A Axis (Rotary Axis): Original Yaskawa Servo Motors+ Original Yaskawa Servo Driver | ||
3 | Control System | Weihong 4 Axis Original NK280B System ( Original Software) |
4 | Electronics | Original France Schneider Brand |
5 | Ball Screw | Original Taiwan Brand Ball Screw for all Axis + Original Taiwan Square Rails |
6 | Machine Structure | Double Strengthened Heavy Duty Basic Structure |
7 | Limit Switch | Original Japan Omron Brand |
8 | Control Cabinet | Separated Control Cabinet Made as European Standards |
9 | Inverters | 12 Sets Inverter |
10 | Advantage | 1.Under Windows operation, can realize four axis linkage, graphical dynamic simulation, real-time track display 3D dynamic tools. |
2.The whole steel structure, not deformation, high precision, mechanical processing after aging |
Parameter:
NO. | Model | CNC ROUTER CIMD2012-12S |
1 | X,Y Processing Size | 200*1200mm*12(Max. diameter*Max. Length*Spindle Quantity) |
2 | X,Z Processing resolution | ±0.01/300mm |
3 | X,Z Reposition Resolution | ±0.01mm |
4 | X、Y、Z Control Resolution Ratio | 0.01mm |
5 | Rotary Axis Reposition Resolution | 4〃 |
6 | Engraving Cylinder Length | 1200mm |
7 | Max. Processing Weight of each | 80KG |
8 | Max. Engraving Speed | 20000mm/min |
9 | Engraving Cylinder diameter | ≦200mm(12 Pieces work) |
10 | Structure | Heavy Duty Steel Tube Structure, Steel Gantry, |
11 | Spindle Power | 3.2KW Water Cooling Spindle (12 Spindles, Good Quality Model) |
12 | Spindle Rotating Speed | 6000- 24000rpm |
13 | Motors | Original Yaskawa Servo Motors(Japan Brand) |
14 | Running Speed | 1m/min---35m/min |
15 | Voltage | 3 Phase 380V 50HZ/60HZ |
16 | Collets | Ф3.175mm---Ф12.7mm； |
17 | Control System | Weihong 4 Axis Original NK280B System |
18 | Compatible Software | Type3/Artcam/Ucancam/Caxa/Mastercam/UG/wentai/JD |
19 | Format | G code |
20 | Transmitting System | High Precision Linear Guide rail Pair and Taiwan Ball screw |
21 | Weight | 3350KG |
22 | Package Size | 3380mm*2280mm*2350mm(X *Y*Z) |
