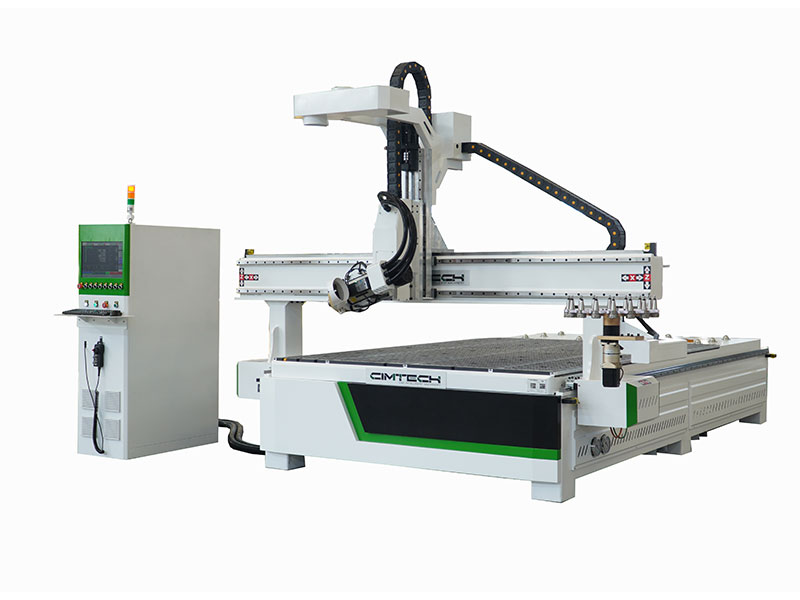

CNC ROUTER CIMD2040-ATC

1

Working Area

2100*4000*400mm

2

Tool Storage

16 Pieces Carousel ATC

3

Spindle

9.0KW Italy HSD Spindle

4

Controller

Syntec 4 Axis Controller

5

Motors and Driver

Japanese Yaskawa Servo System

6

Reducer

Japanese Shimpo Reducers + Industrial Reducer

7

Transmission System

2M High Precision Helical Rack（X/Y Axis）

8

Square Rails and Bearings

Original Taiwan HIWIN Brand

9

Pop-up Stops

6+4(Y Axis+ X Axis)

10

Electronics

Original Schneider Electronics

11

Inverter

11.0KW Delta Inverter

12

Working Table

T-slot + Vacuum Combined Table

13

Lubrication System

Automatic Mode

14

Frame and Gantry

Heavy Duty Model with Double Painting

15

Empty Traveling Speed

≥80000mm/min

16

Processing Speed

≥20000mm/min

17

Format

G code

18

Voltage

3 Phase 380V, 50HZ/60HZ

19

Net Weight

2950KG

20

Packing Size

5300mm*2290mm*2550mm
