Product Description

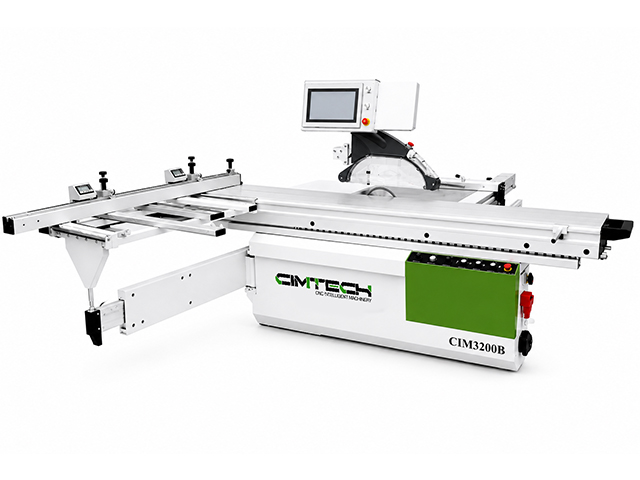

PANEL SAW CIM3200B Parameters:
1 | Power supply | 3PH380V50HZ |
2 | Main spindle power | 5.5KW |
3 | Scoring spindle power | 1.1KW |
4 | Sliding table length | 3200mm |
5 | Sliding table width | 435mm |
6 | Max cutting width | 3200mm |
7 | Max cutting thickness at 90 degree | 120mm |
8 | Scoring spindle diameter | 20mm |
9 | Main spindle speed | 4500/6000rpm |
10 | Scoring spindle speed | 8500rpm |
11 | Tilting of blade | Automatic 45-90 degree |
12 | Raise or down of blade | Automatic |
13 | Rip cutting fence | Max 1200mm width servo automatic |
14 | Control interface | 12inch touching screen |
15 | Overall size(L*W*H) | 3500*3700*1800mm |
16 | Weight | 1050KG |
