Product Description

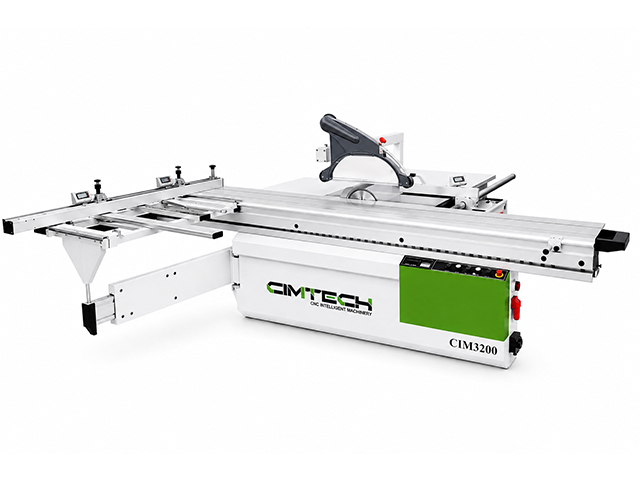

PANEL SAW CIM3200 Function:
NO. | Parts | Detail |
1 | Electronics | Schneider Brand |
2 | Up and Down | Electric Up and Down |
3 | Saw Brand | Freud Brands |
4 | Dust Cover | Europe Dust Cover |
5 | Tilting | Electric Tilting |
6 | Electric Brake | Options |
7 | Soft Start | Options |
PANEL SAW CIM3200 Parameters:
1 | Power supply | 3PH380V50HZ |
2 | Main spindle power | 5.5kW |
3 | Scoring spindle power | 1.1kW |
4 | Sliding table length | 3200mm |
5 | Sliding table width | 435mm |
6 | Max cutting length | 3200mm |
7 | Max cutting thickness at 90 degree | 120mm |
8 | Scoring spindle diameter | 20mm |
9 | Main spindle speed | 4500/6000rpm |
10 | Scoring spindle speed | 8500rpm |
11 | Tilting of blade | Automatic 45-90 degree |
12 | Up or down of main saw blade | Automatic |
13 | Rip cutting fence | Max 1200mm |
14 | Overall size | L3500mm*W3700mm*H1800 |
15 | Weight | 990KGS |
