Product Description

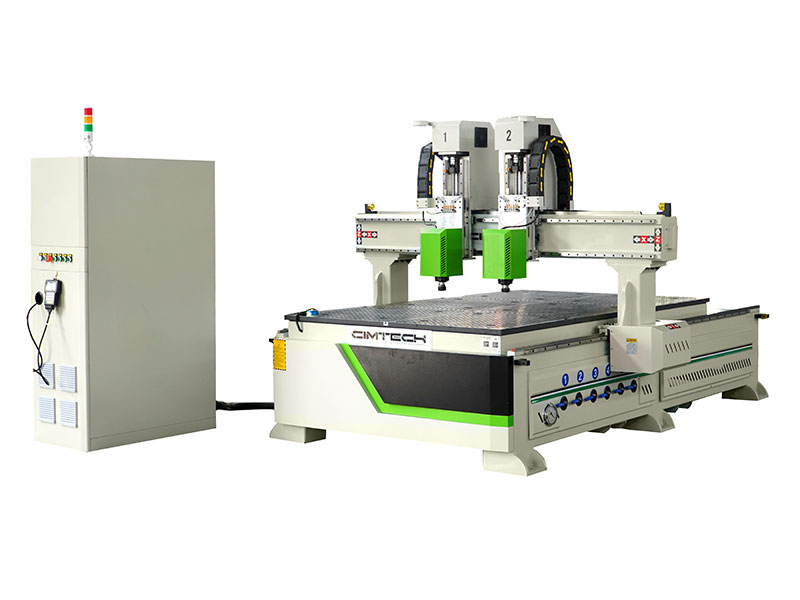

CNC ROUTER CIMM1530DS
VIdeo:
Main Configuration and Parameter:
NO. | Model | CIMM1530DS |
1 | Working Area | 1500*3000*300mm |
2 | Tool Changing | 6.0KW*2(2 Sets Separated Spindles) |
3 | Spindle | 6.0KW HQD Spindle*2(2 Sets) |
4 | Controller | A11 DSP Controller |
5 | Motors and Driver | Taiwan Delta Servo System |
6 | Reducer | Taiwan Delta Servo System |
7 | Transmission System | 2M High Precision Helical Rack |
8 | Square Rails and Bearings | Original Taiwan HIWIN Brand |
9 | Dust Collecting Shelf System | Included |
10 | Electronics | Original Schneider Electronics |
11 | Inverter | 7.5KW Fuling Inverter*2(2Sets) |
12 | Working Table | T-slot + Vacuum Combined Table |
13 | Lubrication System | Automatic Mode |
14 | Frame and Gantry | Heavy Duty Model with Double Painting |
15 | Pushing Bar+ Dust Collecting System | Included |
16 | Empty Traveling Speed | ≥60000mm/min |
17 | Processing Speed | ≥20000mm/min |
18 | Format | G code |
19 | Voltage | 3 Phase 380V, 50HZ/60HZ |
20 | Net Weight | 2050KG |
21 | Packing Size | 3800mm*2290mm*2050mm |
