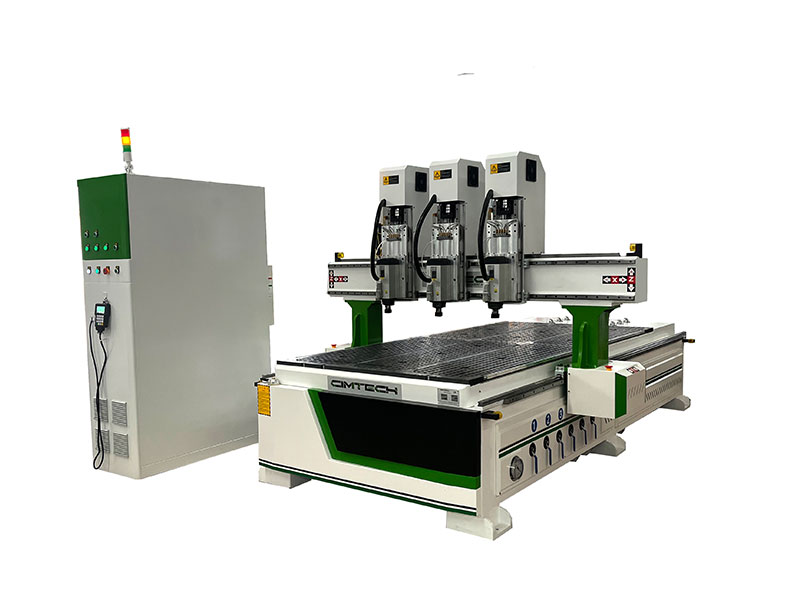

CNC ROUTER CIMM1330-3S

1

Working Area

1300*3000*300mm

2

Tool Changing

6.0KW*3(3 Sets Separated Spindles)

3

Spindle

6.0KW HQD Spindle*3(3 Sets)

4

Controller

A11 DSP Controller

5

Motors and Driver

Taiwan Delta Servo System

6

Reducer

Taiwan Delta Servo System

7

Transmission System

2M High Precision Helical Rack

8

Square Rails and Bearings

Original Taiwan HIWIN Brand

9

Dust Collecting Shelf System

Included

10

Electronics

Original Schneider Electronics

11

Inverter

7.5KW Fuling Inverter*3(3 Sets)

12

Working Table

T-slot + Vacuum Combined Table

13

Lubrication System

Automatic Mode

14

Frame and Gantry

Heavy Duty Model with Double Painting

15

Pushing Bar+ Dust Collecting System

Included

16

Empty Traveling Speed

≥60000mm/min

17

Processing Speed

≥20000mm/min

18

Format

G code

19

Voltage

3 Phase 380V, 50HZ/60HZ

20

Net Weight

2050KG

21

Packing Size

3800mm*2290mm*2050mm
