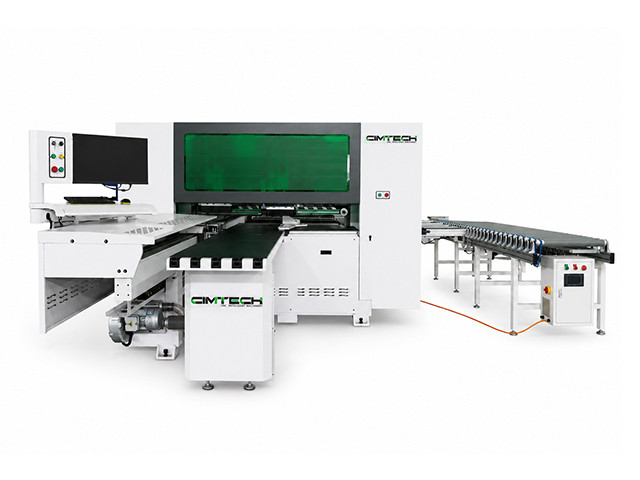

Six-Sided CNC Drilling Machine CIM2800-ATC Highlights:
1 | First-class six-sided drilling technology , easily achieve the drilling of 6 sided, the grooving and milling of the upper and lower sides and the drilling of the hinged holes. Focusing on high-precision drilling and efficient output, it is a processing tool for customized furniture factories and cabinet production. |
2 | 6-sided drilling machine, adopts through beam structure, can do the drilling process on 6 sides , front and back grooving in one time. |
3 | Equipped with two CNC panel clamp, which can adjust the position automatically. |
4 | Not only can do single operation, but also join the multi-machine lines and even with drilling CNC combination, to achieve efficient automation for the drilling process. |
5 | Scanning code processing-Reading processing program by scanning code,no need programming debugging. |
6 | Minimum size for work piece - 70mm（L） X 35mm（W）. |
7 | Each hole can be drilled with extremely high repeatability, so as milling and slotting. Despite the extremely fast movement speed, it can still perfectly protect the work piece surface. |
8 | Automatic thickness checks and length measurements to ensure reliable processes. |
Six-Sided CNC Drilling Machine CIM2800-ATC Parameter:
Overall Size | ||
L | mm | 5050 |
W | mm | 2790 |
H | mm | 2200 |
Work Piece Size | ||
Panel Length | mm | 70 - 2800 |
Panel Width | mm | 35 – 1200（35-50mm L≤1000） |
Panel Thickness | mm | 9 - 50 |
Top Drill Pack 1&2 | ||
Vertical Drill | No. | 2 x12 |
Horizontal Drill | No. | 2 x 8 |
Motor Speed | Rpm(R/Min) | 3400 |
Bottom Drill Pack | ||
Vertical Drill | No. | 3 x 3 |
Motor Speed | Rpm(R/Min) | 3400 |
Router Spindle | ||
Power | KW | 1 x 6 / 1 x 3.5 |
Form | Type | HSK63 / Er25 |
Shank Diameter | 1/2 | |
Revolution | Rpm(R/Min) | 24000 / 18000 |
Feeding Table | ||
Type | Air-Cushion Table | |
Height | mm | 950 |
Out-feed Table | ||
Type | Roller | |
Height | mm | 950 |
Working Data | ||
Total Power | KW | 29.85 |
Working Voltage | V/HZ | 380/50 |
Air Pressure | Mpa | 0.7 - 0.8 |
Working Efficiency | Day / H | 7 x 24 |
Suction Inlet | ||
Diameter | mm | 2 x 150 1 x 100 |
Flow | m³/H | 7300 |
G.W（Approx.） | KG | 3900 |
