Product Description

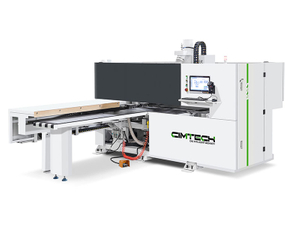

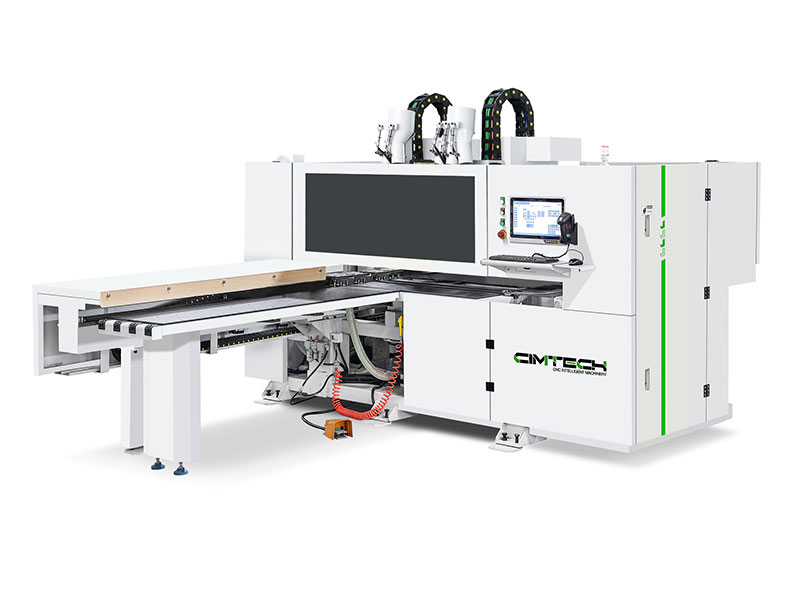

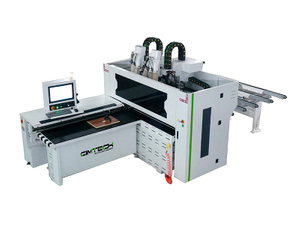

Six Side Drilling Machine CIM2800L-ATC
Video:
Parameter:
1 | Working efficiency | 3-5pcs/day |
2 | Working Length | 200-2800mm |
3 | Working Width | 50-1200mm |
4 | Working Thickness | 9-40mm |
5 | X（A）/Y/Z max working speed | 120/80/30m/min |
6 | Spindle | 9.0KW*1 3.5KW*1（Linear ATC） |
7 | Top drilling (vertical head) | V12pcs*2 |
8 | Top drilling (Horizontal head) | X: 2pcs+ Y: 2pcs |
9 | Bottom drilling (vertical head) | 10Pcs |
Specifications:
NO. | Model | CIM2800L-ATC |
1 | Processing efficiency | 3-5 Pieces/Min |
2 | Working Length | 200-2800mm |
3 | Working Width | 50-1200mm |
4 | Working Thickness | 9-40mm |
5 | X/Y/Z Max. Speed | 120/80/30m/min |
6 | Spindle Power | 3.5KWx2，Up=1Set, Bottom=1 Set |
7 | Spindle Speed | 18000rpm |
8 | Top Drilling Heads | V12*2(Vertical Head) |
9 | Horizontal Head | （X: 2*2； Y: 2*1）*2 |
10 | Bottom Drilling Heads | 10 |
11 | Air Blower | 2.2KW |
12 | Total Power | 30KW |
13 | Size | 5600*2580*2150mm(H*W*H), Area:16.25CBM |
14 | Screen | PC |
15 | Scanner | Included |
16 | Relay | France Schneider Brand |
17 | Sensor | Autonics/ South Korea |
18 | Low Voltage Electronics | France Schneider Brand |
19 | Pneumatic Components | High Quality |
20 | Drilling Center | 3 ，Up 2 Sets + Bottom 1Set |
21 | Servo System | Syntec |
22 | Reducer | Planet Brand |
23 | Controller | Syntec Controller |
24 | Linear Rails | Rost/Germany |
