Product Description

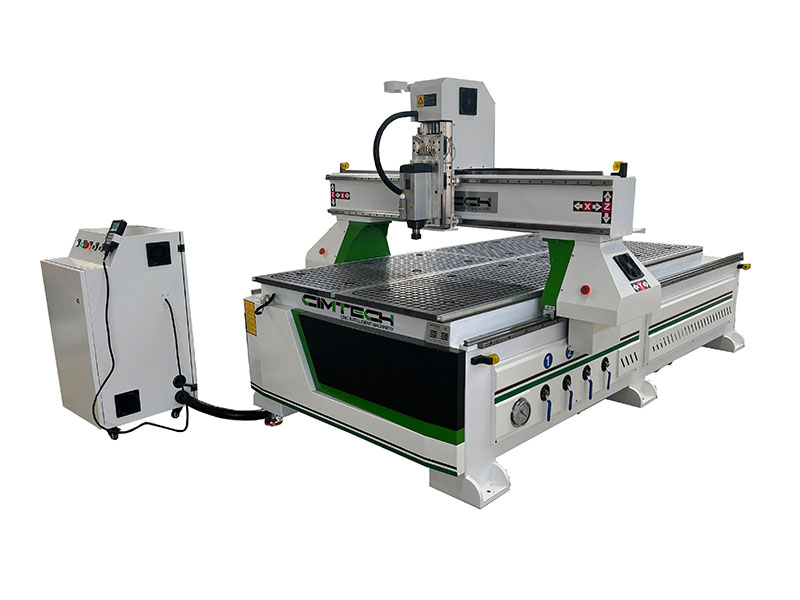

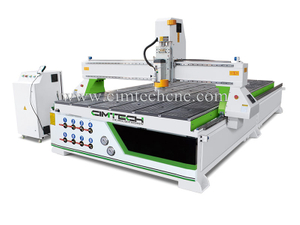

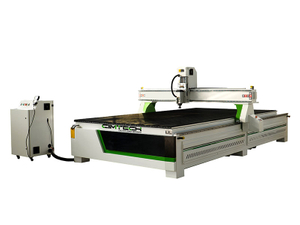

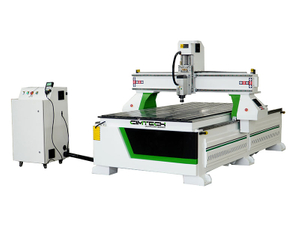

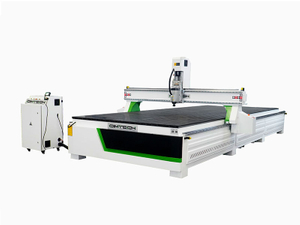

CNC ROUTER CIMS1325A
Video:
Main Configuration and Parameter:
NO. | Description | CIMS1325A |
1 | Working Area | 1300*2500*300mm |
2 | Spindle Working Mode | Manually |
3 | Spindle | 6.0KW China HQD Spindle |
4 | Controller | A11 DSP Controller |
5 | Motors and Driver | Leadshine Hybrid Servo System |
6 | Reducer | Japanese Shimpo Reducers |
7 | Transmission System | 1.5M High Precision Helical Rack |
8 | Square Rails and Bearings | Original Taiwan HIWIN Brand |
9 | Chains | Fully Closed |
10 | Electronics | Original Schneider Electronics |
11 | Inverter | 7.5KW Fuling Inverter |
12 | Working Table | T-slot and Vacuum Combined Table |
13 | Lubrication System | Automatic Mode |
14 | Frame and Gantry | Heavy Duty Model with Double Painting |
15 | Empty Traveling Speed | ≥40000mm/min |
16 | Processing Speed | ≥20000mm/min |
17 | Format | G code |
18 | Voltage | 3 Phase 380V, 50HZ/60HZ |
19 | Net Weight | 1450KG |
20 | Packing Size | 3050mm*2150mm*2050mm |
