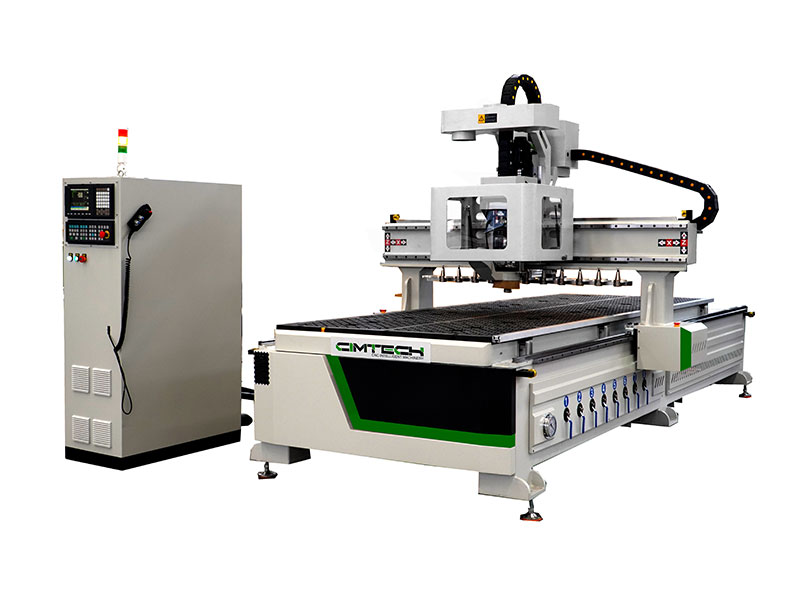

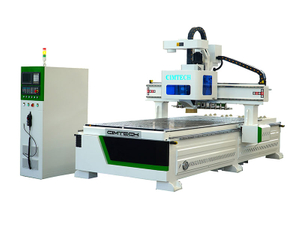

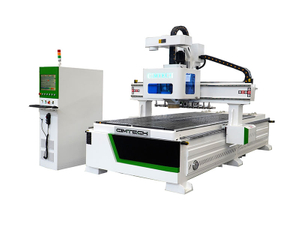

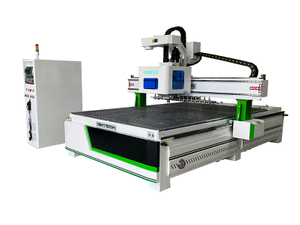

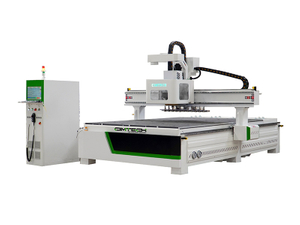

CNC ROUTER CIMC1325-ATC

1

Working Area

1300*2500*180mm

2

Tool Storage

12 Pieces Linear ATC

3

Spindle

9.0KW China HQD Spindle

4

Controller

Syntec 60CB Controller (Option: LNC)

5

Motors and Driver

Syntec Servo System (Option: Leadshine)

6

Reducer

Japanese Shimpo Reducers

7

Transmission System

2M High Precision Helical Rack

8

Square Rails and Bearings

Original Taiwan HIWIN Brand

9

Pop-up Stops

4+3(Y Axis+ X Axis)

10

Electronics

Original Schneider Electronics

11

Inverter

11.0KW Fuling Inverter

12

Working Table

T-slot + Vacuum Combined Table（Option: Vacuum Table）

13

Lubrication System

Automatic Mode

14

Frame and Gantry

Heavy Duty Model with Double Painting

15

Empty Traveling Speed

≥60000mm/min

16

Processing Speed

≥20000mm/min

17

Format

G code

18

Voltage

3 Phase 380V, 50HZ/60HZ

19

Net Weight

2050KG

20

Packing Size

3350mm*2280mm*2050mm
