Product Description

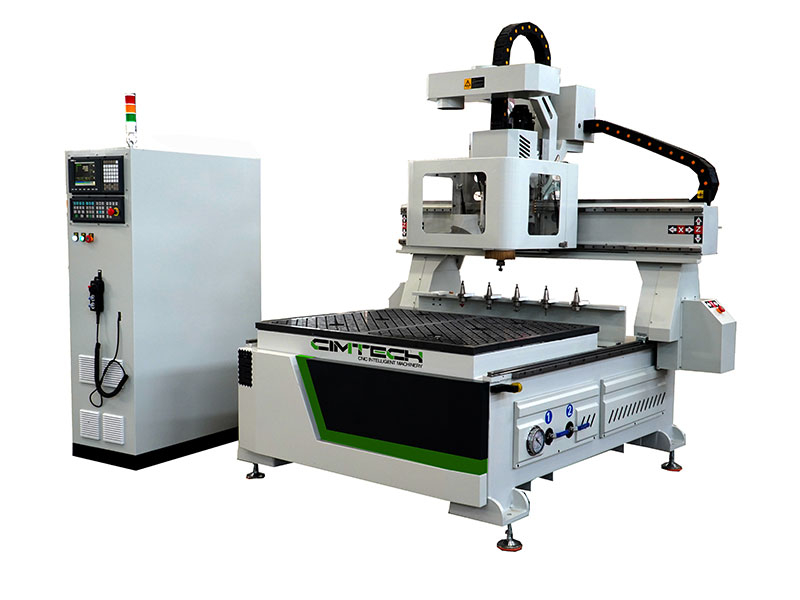

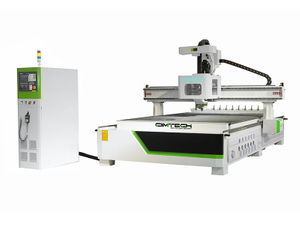

CNC ROUTER CIMC1313-ATC
Video：
Main Configuration and Parameter:
NO. | Description | CIMC1313-ATC |
1 | Working Area | 1300*1300*300mm |
2 | Tool Storage | 8 Pieces Linear ATC |
3 | Spindle | 9.0KW China HQD Spindle |
4 | Controller | Syntec Controller (Option: LNC) |
5 | Motors and Driver | Leadshine Servo System |
6 | Reducer | Japanese Shimpo Reducers |
7 | Transmission System | 2M High Precision Helical Rack |
8 | Square Rails and Bearings | Original Taiwan HIWIN Brand |
9 | Chains | Fully Closed |
10 | Electronics | Original Schneider Electronics |
11 | Inverter | 11.0KW Fuling Inverter |
12 | Working Table | T-slot + Vacuum Combined Table（Option: Vacuum Table） |
13 | Lubrication System | Automatic Mode |
14 | Frame and Gantry | Heavy Duty Model with Double Painting |
15 | Empty Traveling Speed | ≥60000mm/min |
16 | Processing Speed | ≥20000mm/min |
17 | Format | G code |
18 | Voltage | 3 Phase 380V, 50HZ/60HZ |
19 | Net Weight | 1250KG |
20 | Packing Size | 2050mm*2280mm*2050mm |
