Product Description

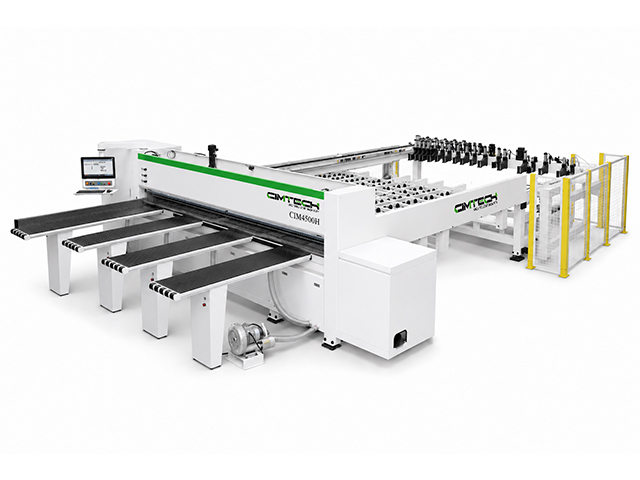

CNC PANEL SAW CIM4500H Parameters:
NO. | Product Name/Model | CIM4500H |
1 | Main Saw Power | 16.5kw (Optional 18.5kw) |
2 | Power of the Secondary Saw Motor | 2.2kw |
3 | Maximum Saw Cut Width | 4500mm |
4 | Maximum Overlap Thickness | 100mm (optional 120mm) |
5 | Cross Cut the Smallest Sheet Size | 5mm |
6 | Minimum Size of Vertical Board | 40mm |
7 | Location Mode | voluntarily |
8 | Servo Positioning Accuracy | 0.02mm |
9 | Sawing Accuracy | ±0.1mm |
10 | The Outer Diameter of the Main Saw Blade | 360mm-400mm |
11 | Main Saw Blade Inner Diameter | 75mm |
12 | Main Saw Speed | 4800r/min |
13 | Motor Power (Servo) | 2kw |
14 | Motor Power of Robotic Arm (Servo) | 2kw |
15 | Power Of Rotary Motor (Servo) | 2kw |
16 | Independent Single Claw Manipulator (Servo) | 2kw |
17 | Power of Push Beam Motor (Servo) | 2kw |
18 | Sawing Speed | 0-100 m/min |
19 | Opening Speed | 120 m/min |
20 | Lift Platform Power | 3kw |
21 | High Pressure Positive Blower | 4 kw 2.2 kw (two) |
22 | Side-by-side | 0.55kw |
23 | Air Pressure | 0.6-0.8mpa |
24 | Specifications of the Floating Platform | 2100*540mm (4) |
25 | Industrial Control Screen | 18.5 Inches |
26 | Aggregate Capacity | 38.5kw (Optional 40.5kw) |
27 | Machine Tool Form Size | 11630*6800*2000mm |
28 | Height of the Platform | 2010*6300*1460mm |
CNC PANEL SAW CIM4500H Configuration:
NO. | Structure Name | Specify | Function |
1 | Structure of the Body | Table: The table is made of 25mm steel plate and square tube welded together. Body: square tube reinforcement welding, zero boundary temperature annealing. | Ensure the long-term sawing accuracy of the machine, but also ensure that the body is never deformed, durable. |
2 | Electrical Structure | Pneumatic: saw blade lifting cylinder diameter 80*125mm | More pressure, multiple plates are not easy to slide. |
Large Saw Motor: 16.5KW Small Saw Motor: 2.2KW Saw Tractor (Servo) Motor: 2KW | Powerful and Powerful | ||
Electrical appliances: Taiwan Yonghong PLC programming controller/touch screen; imported Schneider contactor, Invtensor servo motor, inverter; Yirui pneumatic components, extended the service life of the machine. | The electrical stability prolongs the service life of the machine. | ||
Car running limit device: magnetic sensor control is adopted. | It replaces the phenomenon that the rod travel switch is easy to get stuck with dust in the past. | ||
Air pressure: the air pressure of this equipment should be maintained at 0.6-0.8MPA during use. |
More pressure, stable gas source, ensure cutting accuracy. | ||
Voltage: This equipment uses 380 volts, three phases and 50 HZ. | According to customer demand, the transformer can be modified to correspondingly increase the volt. (apolegamy) | ||
3 | Safeguard Construction | Taiwan imported aluminum strip anti-pressure hand device to ensure personnel safety. | Ensure the safety of production process and reduce potential safety risks. |
4 | Deputy Stand Structure | The steel ball platform is floated by a high pressure fan. | The plate is light and easy to load and unload, and the surface of the plate is protected from scratches. |
5 | Transmission Structure | Positioning guide rail and saw blade lifting guide rail device: use Taiwan Yinchuang technology, square steel strip linear precision guide rail. | After use, it is wear-resistant, not easy to deform, and not easy to hide dust, which leads to the jam of the saw car. |
Gear Rack Traction Transmission | The pull is more even and the force is more steady. | ||
The main saw uses Taiwan Samsung multi-groove belt, and the small saw triangular belt is imported. | The main saw imported from Taiwan has a belt life 20 times longer than that of the triangular belt. | ||
6 | Screw Shaft Structure | The Large Saw Uses φ400*φ75*4.0mm Alloy Blade The Small Saw Uses φ180*φ50*3.8/4.8 Alloy Blade | (Choose according to customer needs) |
7 | Dust proof Structure | The dust-proof curtain with ups and downs makes the working environment cleaner and the saw cutting accuracy higher. | The whole cutting workshop is dust-free, reducing the harm to people, the production environment is cleaner, less noise |
8 | Control Structure | 18.5 inch key touch/button integrated computer screen, the box can rotate 180° | Suitable for different angles of operation, easy to use. |
