Product Description

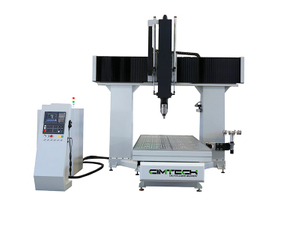

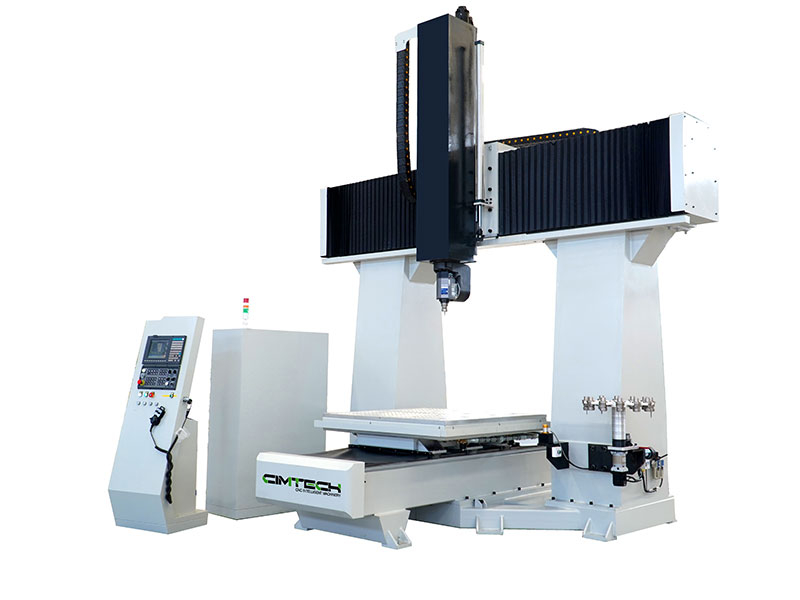

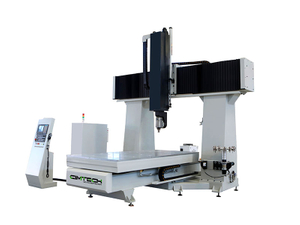

CIMTECH 5 AXIS CNC ROUTER CIMH1212-ATC
Video:
Main Configuration：
NO. | Terms | Specifications |
1 | Spindle | Italy HITECO 10KW ATC Water cooling spindle. |
2 | Control system | Taiwan SYNTEC five axis operation system, include RTCP function, it’s controlled by industry standard G code, compatible with the software of CAD/CAM. |
3 | Driving system | Japan YASKAWA Servo motor system with reducer. |
4 | Working table | Aluminum Alloy working table with T-slot, satisfied for all different type work-piece. |
5 | Transmission parts | Liner guide rail: Taiwan Brand CSK Ball screw: Taiwan TBI |
6 | Lubrication System | Automatic oil lubrication system. |
7 | Electric accessories | Adopt low-voltage electrical components, like Schneider, Omron, install little air conditioning to control temperature in the control box. |
8 | Tool magazine | Aluminum alloy plate, 12 Sets Servo carousel tools, with protective shield. |
9 | Control cable | Signal cable and control cable adopt German IGUS cable. |
10 | Accessories | Tool, tool holder, jacket, instruction, sizing block, automatic tool setter. Automatic spray mist cooling system for aluminum & brass machining. Transformer, Water cooling vacuum pump ( Becker pump is optional). |
Parameters:
NO. | Description | CIMH1212-ATC |
1 | X /Y/ Z Axis Working Area | 1200*1200*800mm |
2 | C Axis Rotary Angle | ±360° |
3 | B Axis Rotary Angle | ±110 |
4 | X Axis Maximum Speed | 10m/min |
5 | Y Axis Maximum Speed | 10m/min |
6 | Z Axis Maximum Speed | 8m/min |
7 | C/B Axis Maximum Speed | 8m/min |
8 | Max. Spindle speed | 24000rmp |
9 | Orientation Precision | ±0.05mm |
10 | System Resolution | ±0.001mm |
11 | Operating system | 5 Axis Syntec Control System |
12 | Tool Storage | 12 Tools Storage |
13 | Compatibility Software | UG, Alpha Cam,Becam,Type3 |
14 | Spindle Power | 10KW (Options: 15.0KW) |
15 | Voltage | 3PHASE, 380V, 50HZ |
16 | Gross weight | 8500KG |
