Product Description

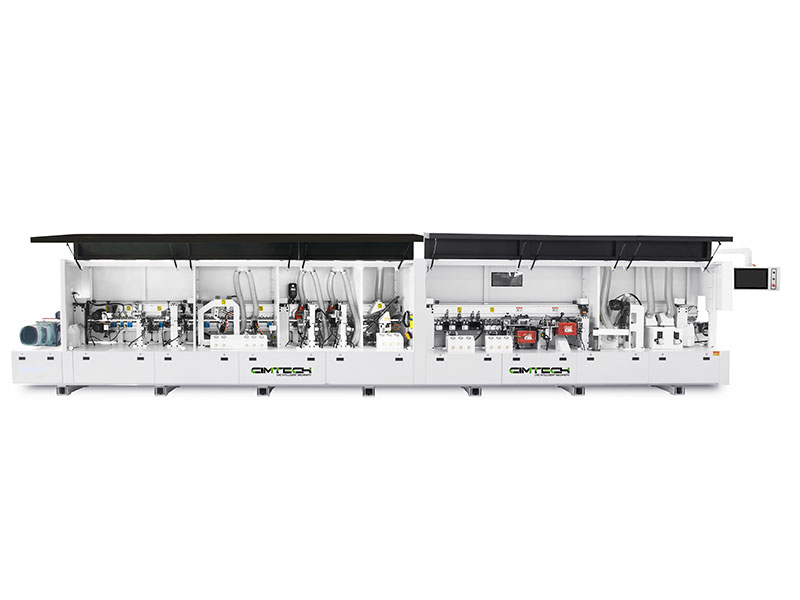

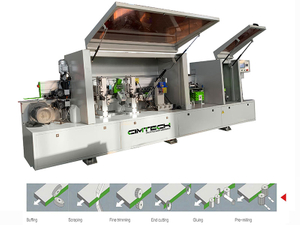

Automatic Edge Banding Machine CIM1100
Video:
Function:
45 Degree Edge Banding Function:
1 | Pre-milling |
2 | 45 Degrees Beveled Saw Milling |
3 | Heating Lamp |
4 | Press-Gluing |
5 | End Cutting |
6 | Rough Trimming |
7 | Bottom Fine Trimming |
8 | Upside Flat Scraping |
9 | Buffing 1 |
10 | Buffing 2 |
11 | Cleaning |
90 Degree Edge Banding Function:
1 | Pre-milling |
2 | Heating Lamp |
3 | Straight Gluing |
4 | Press-Gluing |
5 | End Cutting |
6 | Fine Trimming |
7 | Corner Trimming |
8 | Scraping |
9 | Buffing 1 |
10 | Buffing 2 |
11 | Cleaning |
Parameter:
1 | Model | CIM1100 |
2 | Edge Thickness | 0.4-3mm |
3 | Working Pressure | 0.6Mpa |
4 | Total power | 27.5KW |
5 | Feed speed | Bevel Edge: 13m/min, Straight Edge:15-24m/min |
6 | Electric lifting | 0.37KW |
7 | Panel Thickness | Bevel Edge: 16-25mm, Straight Edge: 10-60mm |
8 | Sheet length | ≧120mm |
9 | Panel Width | ≧80mm |
10 | Overall Size | 10000*970*1800mm(L*W*H) |
11 | Gross Weight | 3550KG |
